Instrument Cluster (IC) Lens: Notes

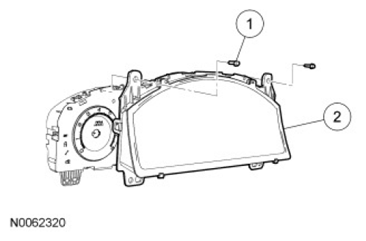

Fig 1: Identifying Instrument Cluster (IC) Lens Components
G07440323Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 N804987 Instrument Cluster (IC) lens screws (2 required)
2 10890 IC  lens and mask assembly
