Vacuum Pump - Hybrid Vehicles

Fig 1: Vacuum Pump Replacement Components With Torque Specifications - Hybrid

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	-	Vacuum pump electrical connector (part of 14A411)
2	W701626	A/C compressor bolt (2 required)
3	W500320	A/C compressor bracket bolts
4	19D624	A/C compressor bracket
5	W500233	Vacuum pump bracket bolt
6	W520212	Vacuum pump bracket nut
7	2A451	Vacuum pump assembly
8	9C482	Vacuum hose

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING article.
Remove the oil filter adapter. For additional information, ENGINE MECHANICAL - 2.5L HYBRID article.
Remove the Motor Electronics Cooling System (MECS) coolant pump bolts and position the pump aside.
- To install, tighten the bolts to 20 Nm (177 lb-in).

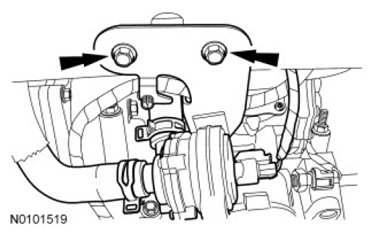

Fig 2: Locating Motor Electronics Cooling System Coolant Pump Mounting Bolts
Courtesy of FORD MOTOR CO.
Remove the 2 lower A/C compressor bolts.
- To install, tighten to 25 Nm (18 lb-ft).
Remove the 2 A/C compressor bracket bolts and the bracket.
- To install, tighten the bolts to 25 Nm (18 lb-ft).
Fig 3: Locating A/C Compressor Bracket Mounting Bolts
Courtesy of FORD MOTOR CO.
Disconnect the vacuum pump electrical connector.
Remove the vacuum pump bracket nut.
- To install, tighten to 25 Nm (18 lb-ft).
Remove the vacuum pump bracket bolt.
- To install, tighten the bolts to 25 Nm (18 lb-ft).
- Position the vacuum pump to release the clamp, detach the vacuum hose and remove the vacuum pump.
To install, reverse the removal procedure.
