Output Shaft Seal

Output Shaft Seal













Removal

NOTE: This procedure applies to vehicles equipped with automatic transaxles.

1. Remove the Power Transfer Unit (PTU) rear output shaft flange. For additional information, refer to Output Flange Service and Repair.

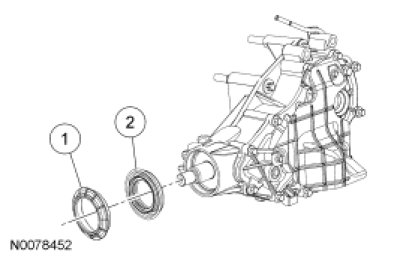

2. Remove the deflector.

3. Using a suitable tool, remove the PTU output shaft oil seal.

Installation

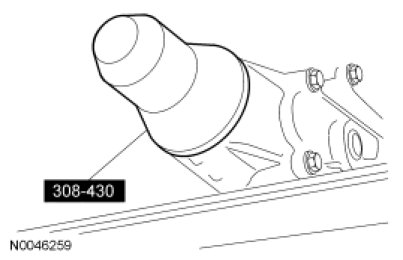

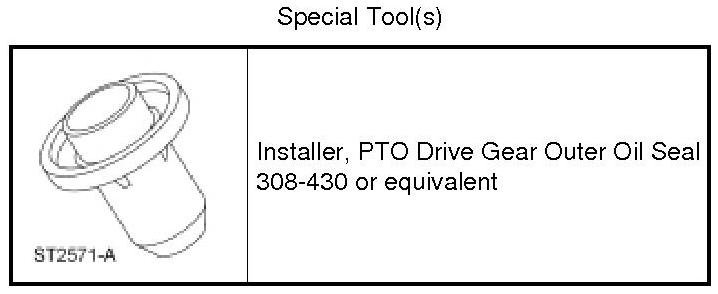

1. Using the PTO Drive Gear Outer Oil Seal Installer, install the PTU output shaft oil seal.





2. Install the deflector.

3. Install the PTU output shaft flange. For additional information, refer to Output Flange Service and Repair.
