Removal

Intermediate Shaft Seal





1. Remove the Power Transfer Unit (PTU). For additional information, refer to Power Transfer Unit (PTU) Removal.

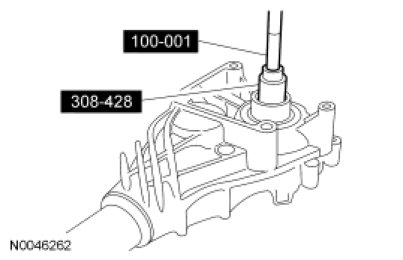

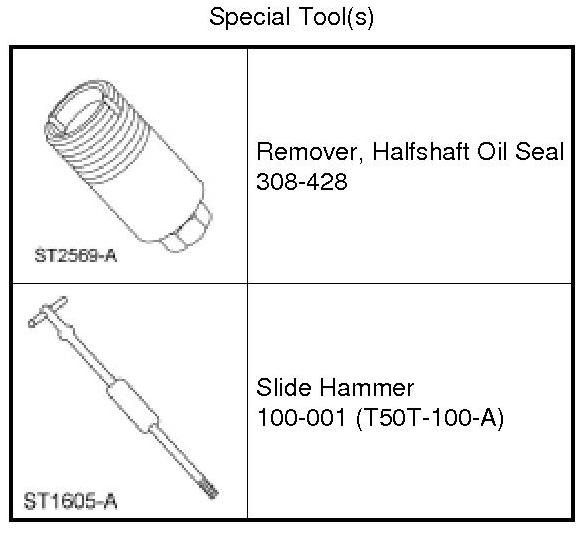

2. Using the Halfshaft Oil Seal Remover and Slide Hammer, remove the intermediate shaft seal from the left (transmission) side of the PTU.
