Installation

Intermediate Shaft Seal

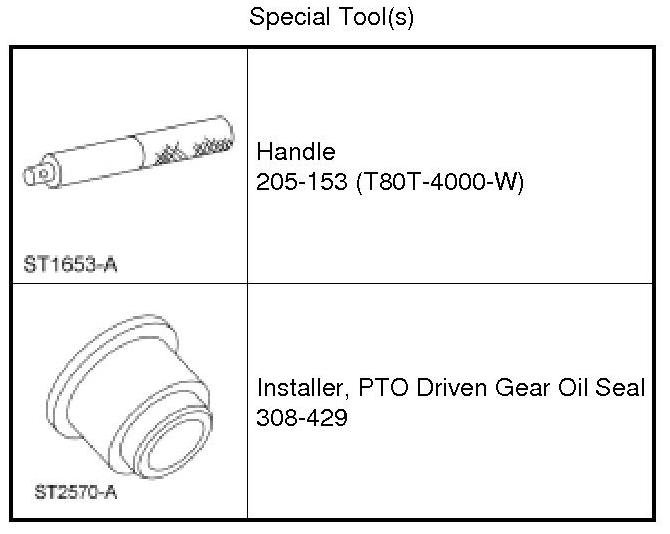

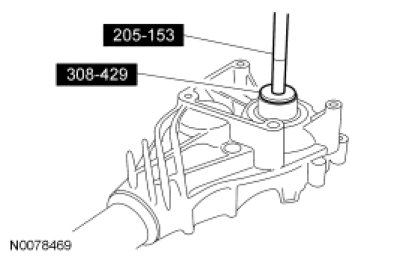

1. Using the Handle and PTO Driven Gear Oil Seal Installer, install the intermediate shaft seal.





2. Install the Power Transfer Unit (PTU). For additional information, refer to Power Transfer Unit (PTU) Removal.
