Removal

Input Shaft Seal

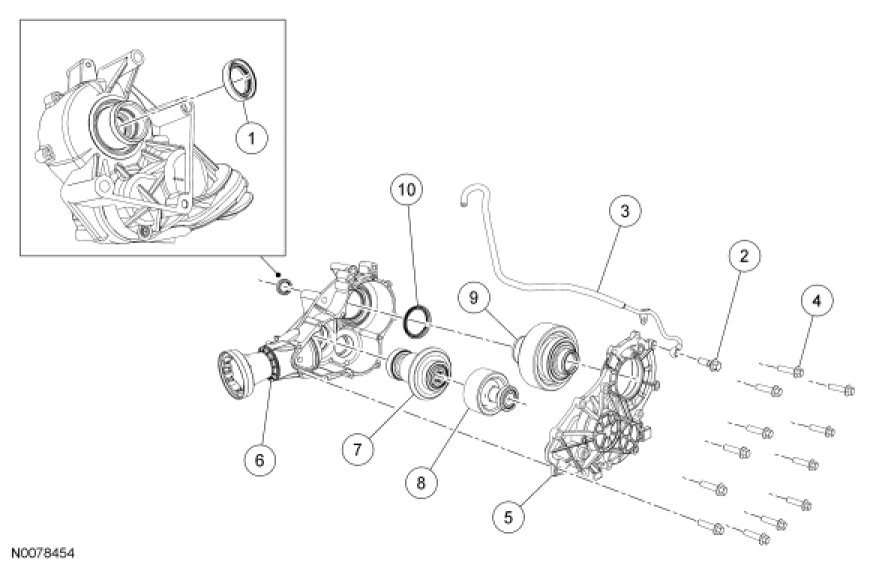

1. Remove the Power Transfer Unit (PTU). For additional information, refer to Power Transfer Unit (PTU) Removal.

2. Remove the bolt and the vent tube.

3. Remove the 12 bolts and the PTU cover.

4. Remove the helical driven gear, idler gear and drive gear.

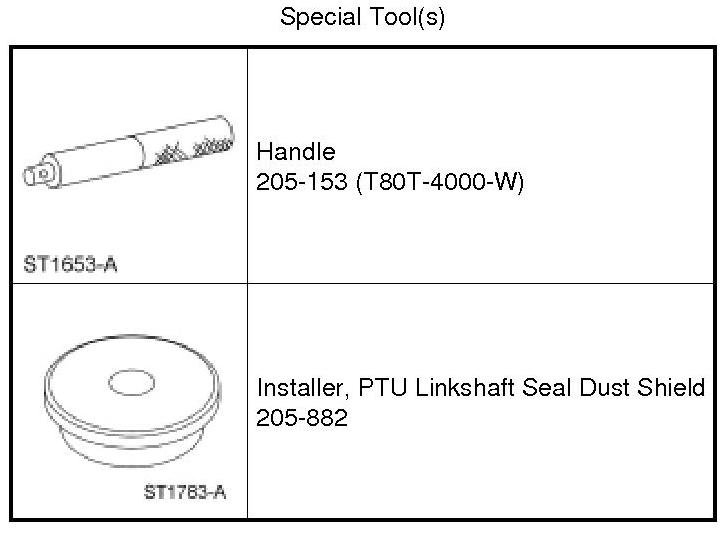

5. Using the PTU Linkshaft Seal Dust Shield Installer and Handle, remove the input shaft seal.

6. Clean the PTU sealing surface.
