Radiator: Service and Repair

Radiator - 3.0L (4V)

Radiator Hoses









Radiator









Removal and Installation

1. Drain the cooling system. For additional information, refer to Cooling System Draining, Filling and Bleeding Cooling System Draining, Filling and Bleeding.

2. Remove the cooling fan motor and shroud. For additional information, refer to Cooling Fan Motor and Shroud Service and Repair.

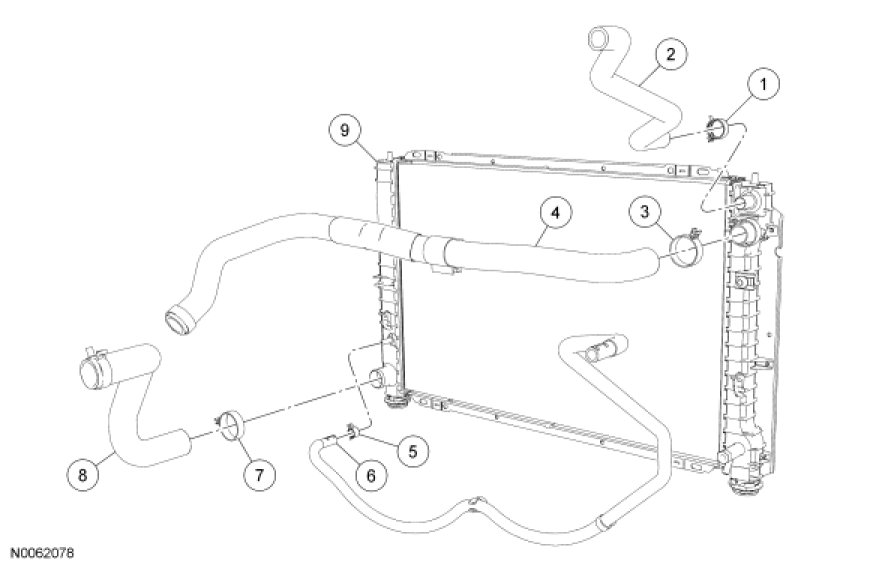

3. Disconnect the radiator-to-degas bottle hose and upper radiator hose from the radiator.

4. Disconnect the degas bottle-to-radiator hose from the radiator.

5. Disconnect the lower radiator hose from the radiator.

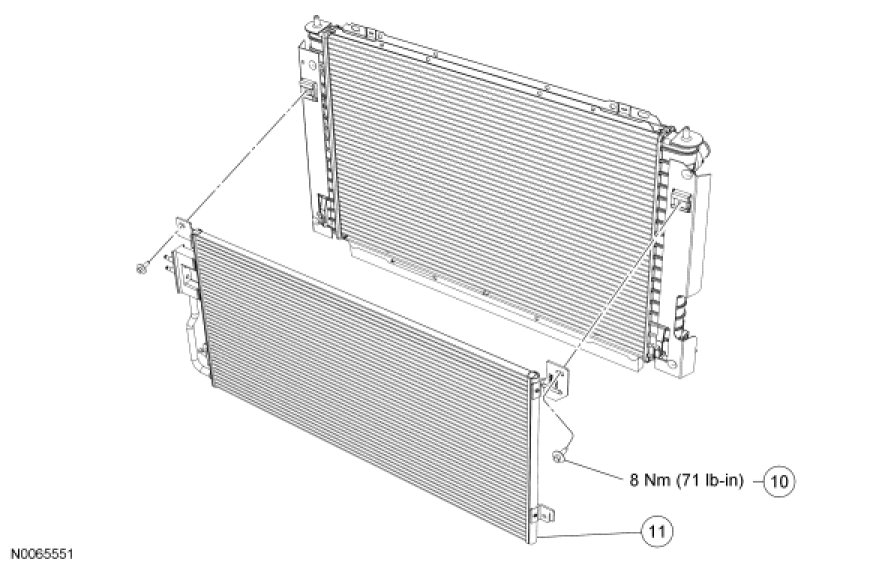

6. Remove the 2 A/C condenser-to-radiator bolts and position aside the A/C condenser from the radiator.
- To install, tighten to 8 Nm (71 lb-in).

7. Remove the radiator.

8. To install, reverse the removal procedure.

9. Fill and bleed the cooling system. For additional information, refer to Cooling System Draining, Filling and Bleeding Cooling System Draining, Filling and Bleeding.
