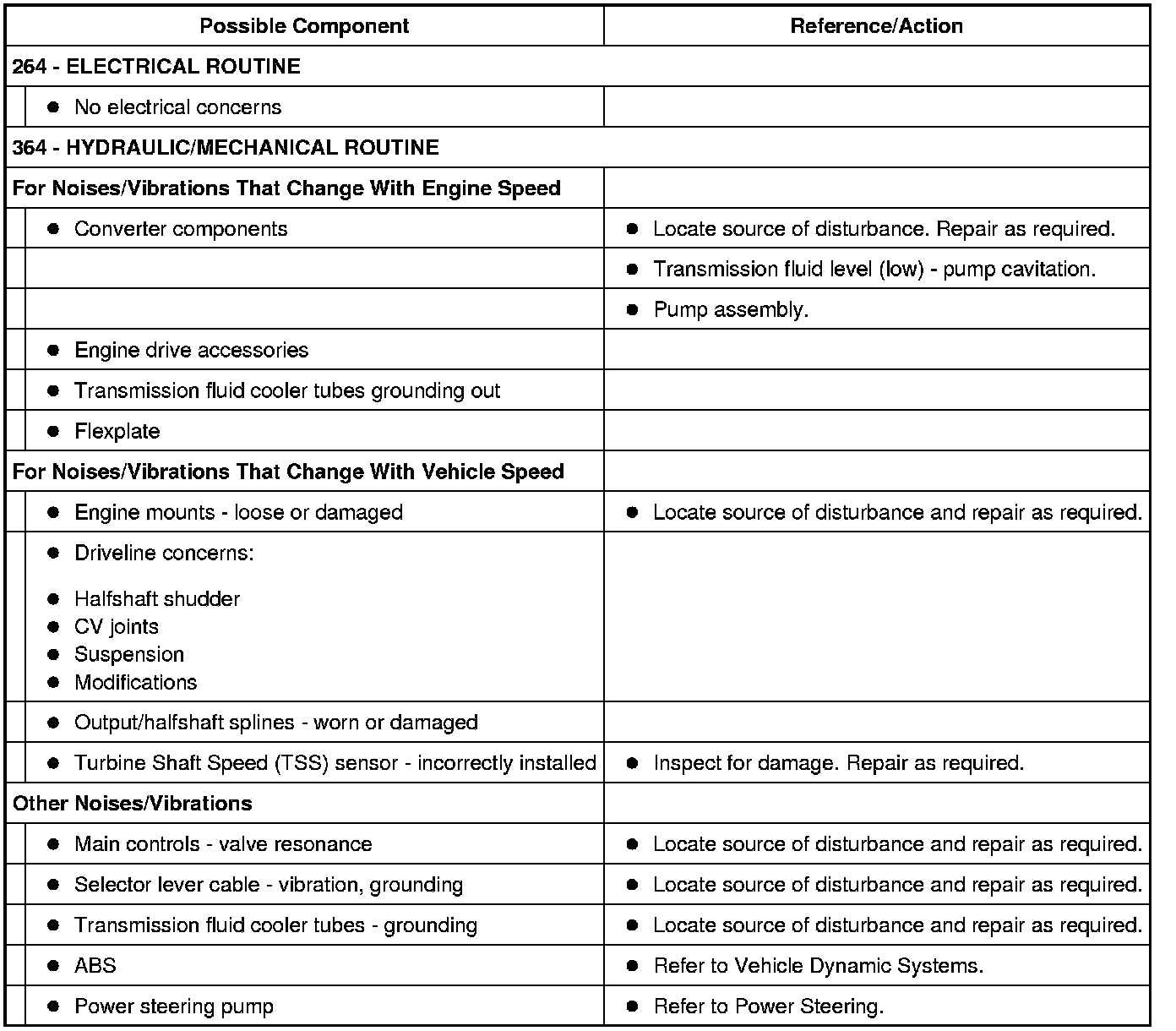

264/364, Noise/Vibration - Forward Or Reverse

Diagnostic Routines

Other Concerns: Noise/Vibration - Forward Or Reverse

NOTE: NVH symptoms should be identified using the diagnostic tools that are available. For a list of these tools, an explanation of their uses and a glossary of common terms, refer to Noise, Vibration and Harshness Testing and Inspection. Since it is possible any one of multiple systems may be the cause of a symptom, it may be necessary to use a process of elimination type of diagnostic approach to pinpoint the responsible system. If this is not the causal system for the symptom, refer back to Noise, Vibration and Harshness Testing and Inspection for the next likely system and continue diagnosis.
