Backup Lamp Switch: Service and Repair




Reversing Lamp Switch









Removal and Installation

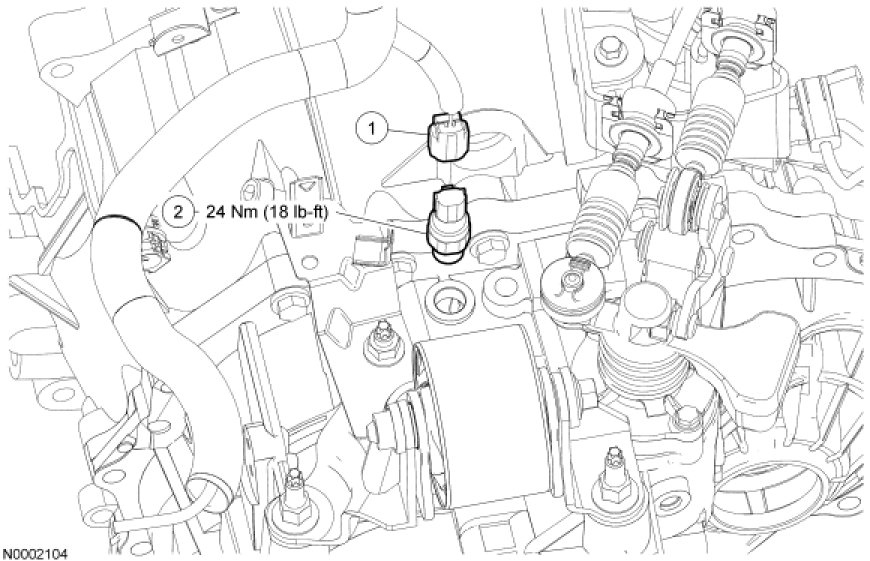

1. Disconnect the reversing lamp switch electrical connector.

2. Remove the reversing lamp switch.
- To install, tighten to 24 Nm (18 lb-ft).

3. To install, reverse the removal procedure.
