Connector Views
>>
Canister Purge Control Valve
>>

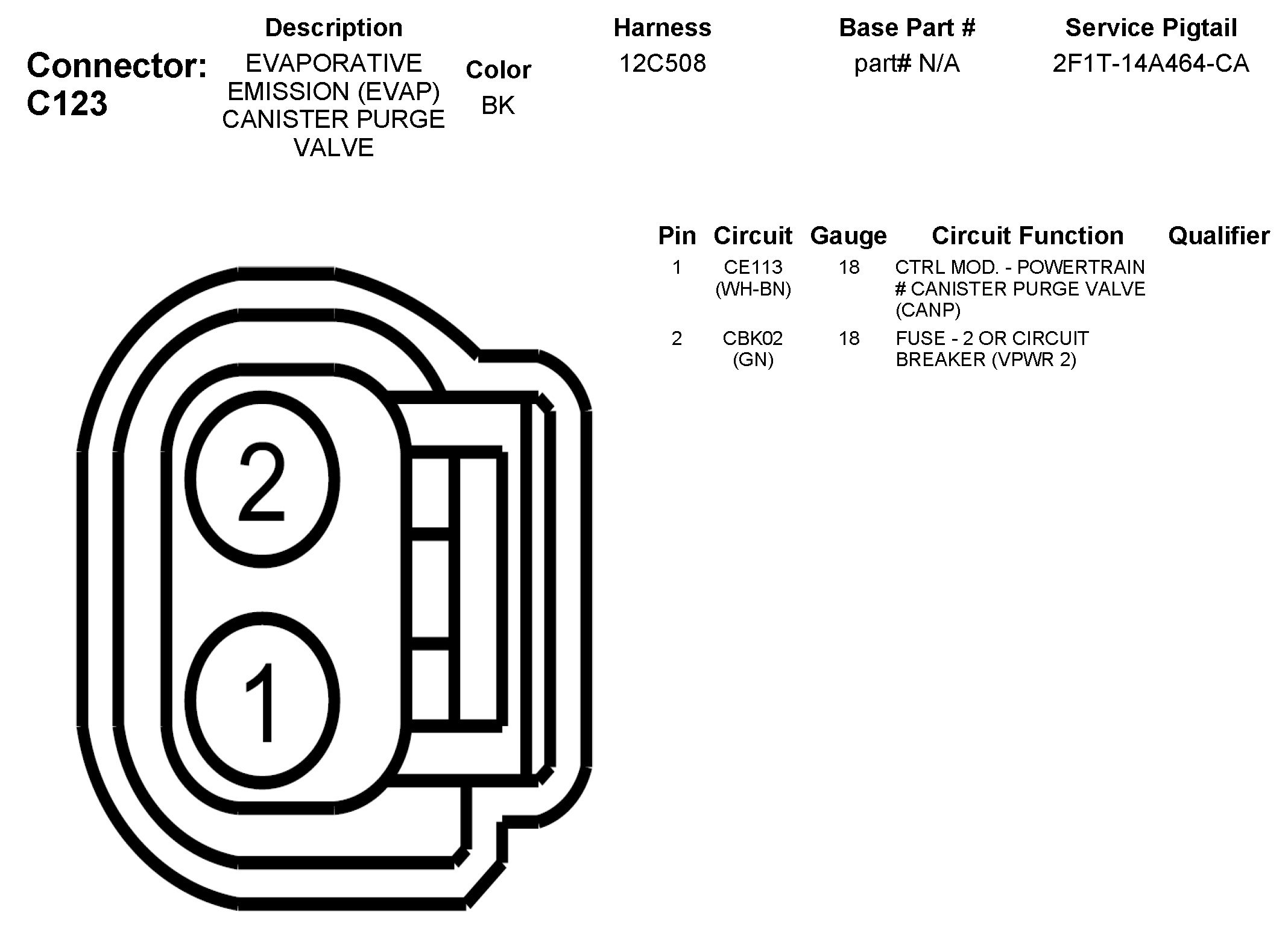

C123 Evaporative Emission (EVAP) Canister Purge Valve
C123 Evaporative Emission (EVAP) Canister Purge Valve
