Audio Input Jack

Audio Input Jack









Removal and Installation

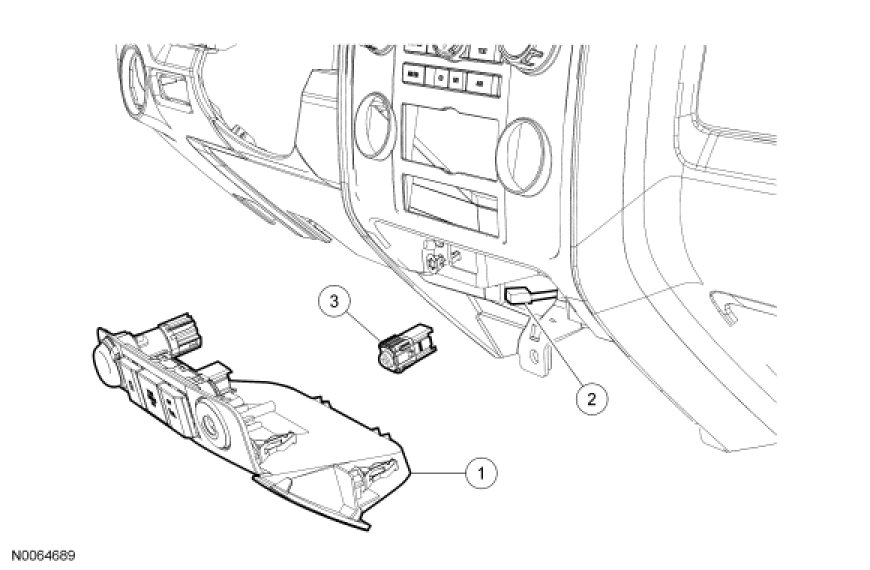

1. NOTE: Pull straight back to disengage the clips.

Remove the instrument panel lower panel.

- Disconnect the electrical connector(s).

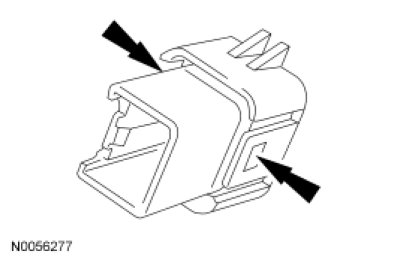

2. Release the tabs and remove the audio input jack.





3. To install, reverse the removal procedure.
