Antenna Cable - Satellite Radio

Antenna Cable - Satellite Radio

















Removal

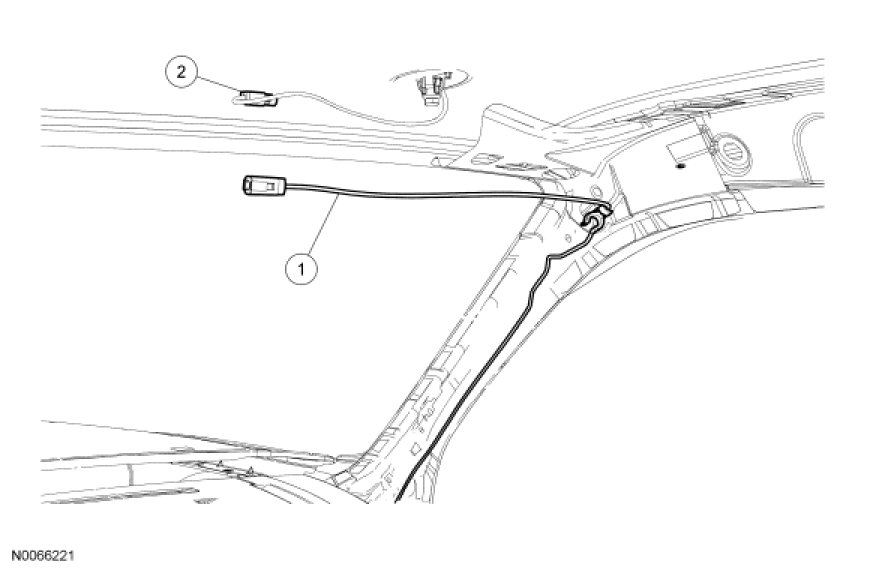

Upper cable

1. Remove the RH A-pillar trim panel. For additional information, refer to Interior Trim and Ornamentation A-Pillar Trim Panel.

2. Remove the RH sun visor. For additional information, refer to Headliner - Exploded View in Interior Trim and Ornamentation Service and Repair.

3. Lower the front of the headliner enough to gain access to the satellite radio antenna electrical connector.
- Disconnect the satellite radio antenna electrical connector.

4. Remove the RH instrument panel side finish panel.
- Disconnect the upper-to-lower satellite radio antenna electrical connector.

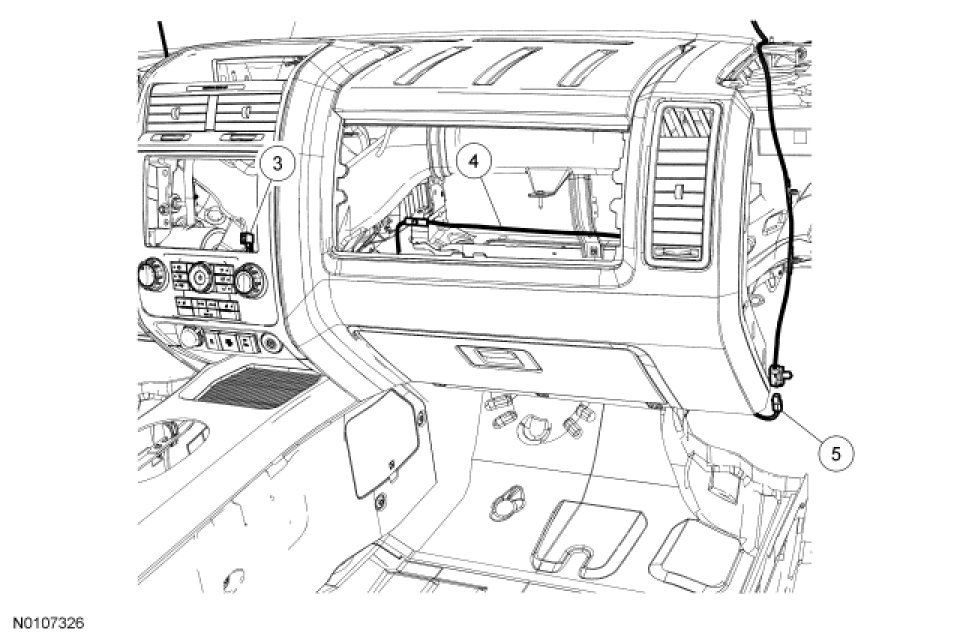

Lower cable

5. Remove the RH Instrument panel side finish panel.
- Disconnect the upper-to-lower satellite radio antenna electrical connector.

6. Remove the glove compartment.

7. Remove the ACM. For additional information, refer to Audio Control Module (ACM) Audio Control Module (ACM).
- Disconnect the lower satellite radio antenna electrical connector from the ACM.

All cables

8. To install, reverse the removal procedure.
