Spring - F-250, F-350: Notes
WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

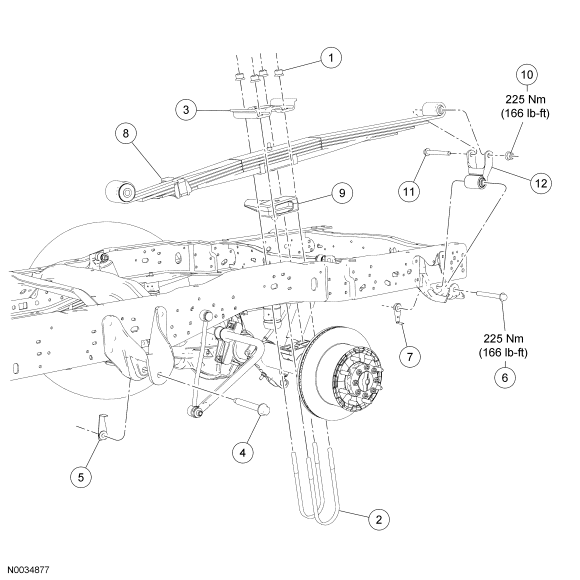

| Item | Part Number | Description |
|---|---|---|
| 1 | N620485 | U-bolt nut (4 required) |
| 2 | 5705 | U-bolt (2 required) |
| 3 | 5798 | Spring upper plate |
| 4 | W706828-S | Spring-to-front bracket bolt |
| 5 | W707678 | Spring-to-front bracket flag nut |
| 6 | W500593 | Shackle-to-rear bracket bolt |
| 7 | W711218 | Shackle-to-rear bracket flag nut |
| 8 | 5560/ 5A975 | Spring assembly |
| 9 | 5598 | Spacer |
| 10 | W500593-S | Spring-to-shackle bolt |
| 11 | N620485-S | Spring-to-shackle nut |
| 12 | 5776 | Spring shackle |
