Bumper Cover - Rear

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .

NOTE: MKX shown in illustration, Edge Similar.

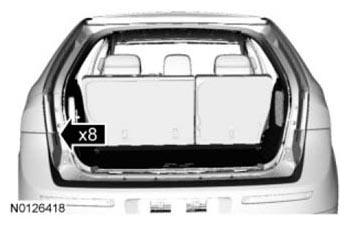

Fig 1: Identifying Upper Rear Bumper Cover Pin-Type Retainers (Edge)

Courtesy of FORD MOTOR CO.

Remove the 8 upper rear bumper cover pin-type retainers (6 on Edge).

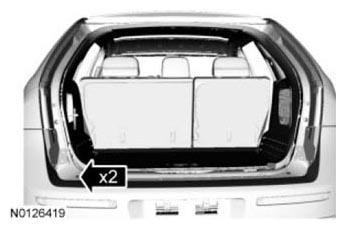

Remove the 2 upper rear bumper cover bolts.

Fig 2: Identifying Upper Rear Bumper Cover Bolts
Courtesy of FORD MOTOR CO.
Remove the 12 screws (6 each side) from the rear wheel splash shields.

Fig 3: Locating Rear Wheel Splash Shields Screws
Courtesy of FORD MOTOR CO.

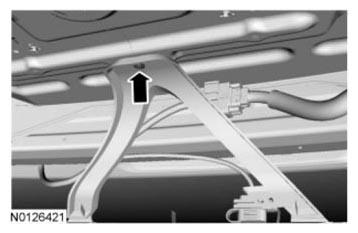

Remove the rear bumper cover-to-body brace screw.

Fig 4: Locating Rear Bumper Cover-To-Body Brace Screw
Courtesy of FORD MOTOR CO.

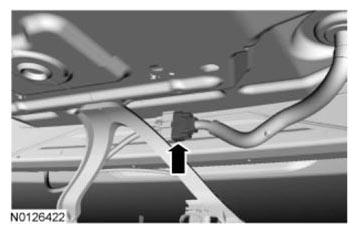

Disconnect the trailer hitch and parking aid system wiring harness, if equipped.

Fig 5: Locating Trailer Hitch And Parking Aid System Wiring Harness
Courtesy of FORD MOTOR CO.

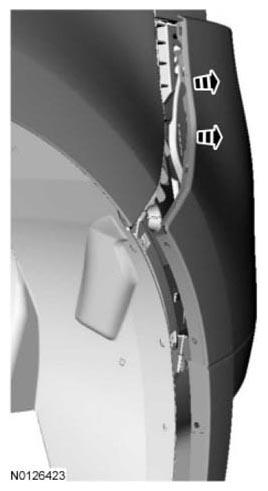

Remove the rear bumper cover.
- Remove the bumper cover from the bumper cover bracket.
- Remove the bumper cover.

  Fig 6: Locating Rear Bumper Cover
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- Transfer parts as necessary.
