Passive Start Antenna - Front

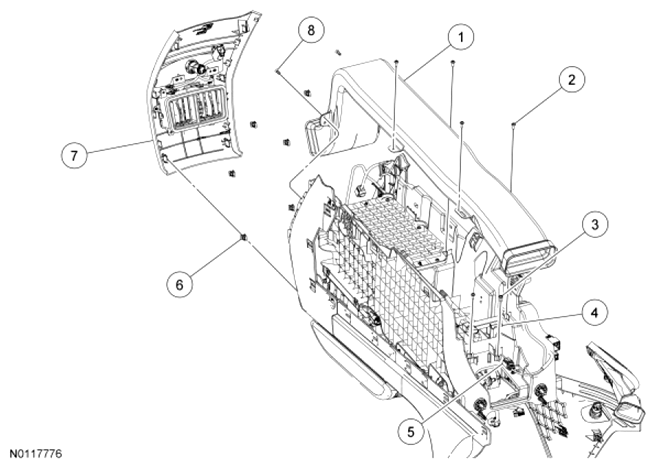

PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 19E766 | Console heat duct |
| 2 | W790141 | Console heat duct screw (4 required) |
| 3 | W790141 | Front passive start antenna screws (2 required) |
| 4 | 15K603 | Front passive start antenna |
| 5 | - | Front passive start antenna electrical connector (part of 14B079) |
| 6 | W712427 | Retaining clip (6 required) |
| 7 | 045E24 | Console rear finish panel assembly |
| 8 | - | Console heat duct screw (2 required) |
- Remove the floor console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
- Remove the console rear finish panel assembly.
- Remove the 6 screws and the console heat duct.
- Remove the 2 screws and the front passive start antenna.
- Disconnect the front passive start antenna electrical connector.
- To install, reverse the removal procedure.
