Parking Aid Sensor

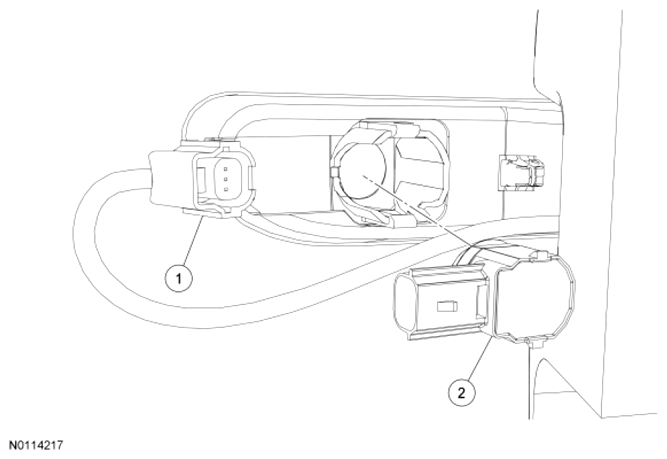

Fig 1: Identifying Parking Aid Sensor And Electrical Connectors Location

G07402459

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	-	Parking aid sensor electrical connectors (part of 14N139)
2	15K859	Parking aid sensors

Remove the rear bumper cover. For additional information, refer to BUMPERS .
Disconnect the parking aid sensor(s) electrical connector(s).
Press the retaining tabs and remove the parking aid sensor(s).
To install, reverse the removal procedure.
