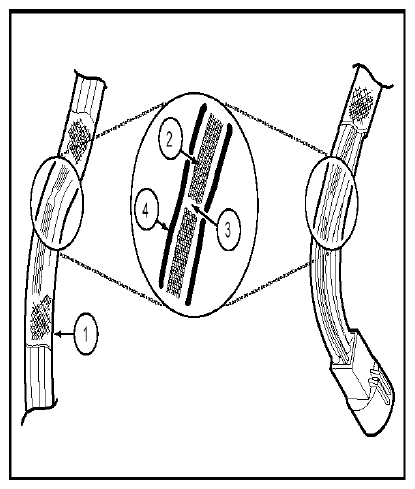

Broken wire strands in harness

1 = Wiring harness tape

2 = Wiring strand

3 = Broken strands intermittent signal

4 = Circuit insulation

Remove the tape and flex/feel each circuit for a reduction in diameter at break.

Fig 1: Example Of Broken Wire Strands In Harness

Courtesy of FORD MOTOR CO.
