Parking, Rear and License Lamps: MKX

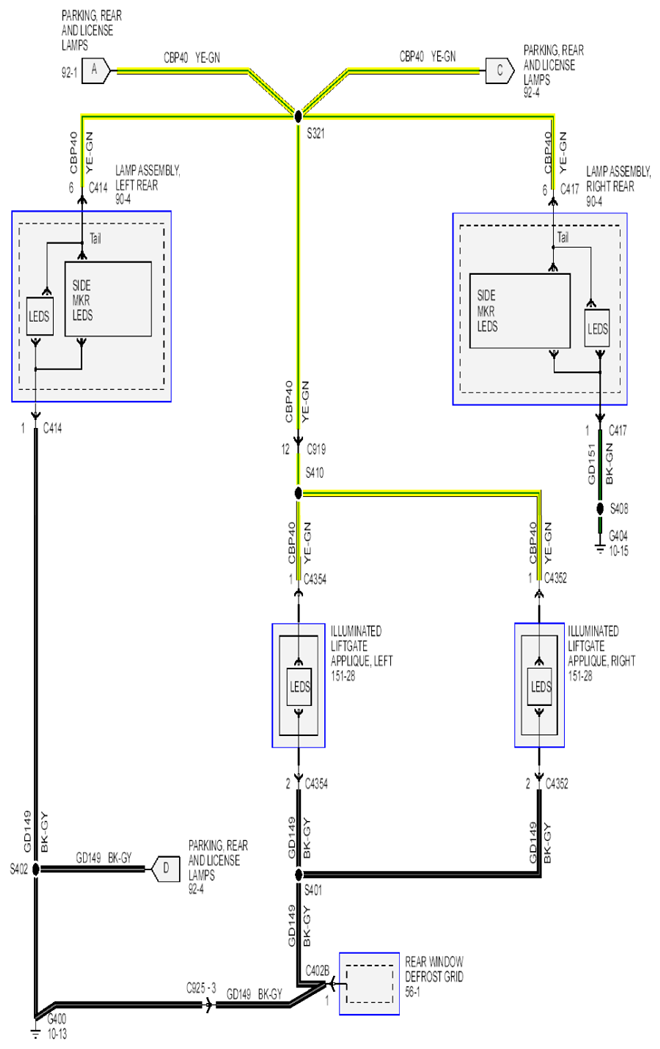

Fig 1: Parking, Rear and License Lamps Circuit Diagram - MKX (1 Of 3)

Courtesy of FORD MOTOR CO.

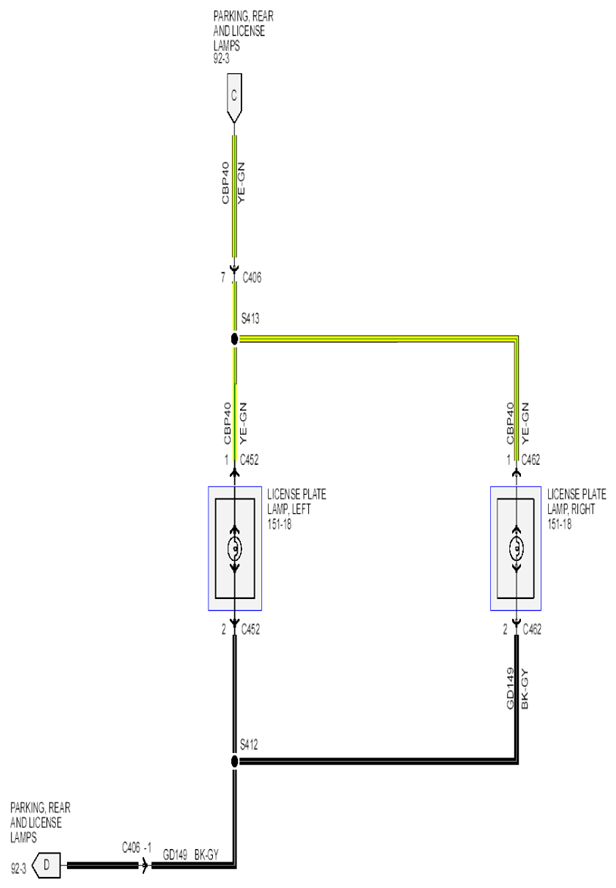

Fig 2: Parking, Rear and License Lamps Circuit Diagram - MKX (2 Of 3)

Courtesy of FORD MOTOR CO.

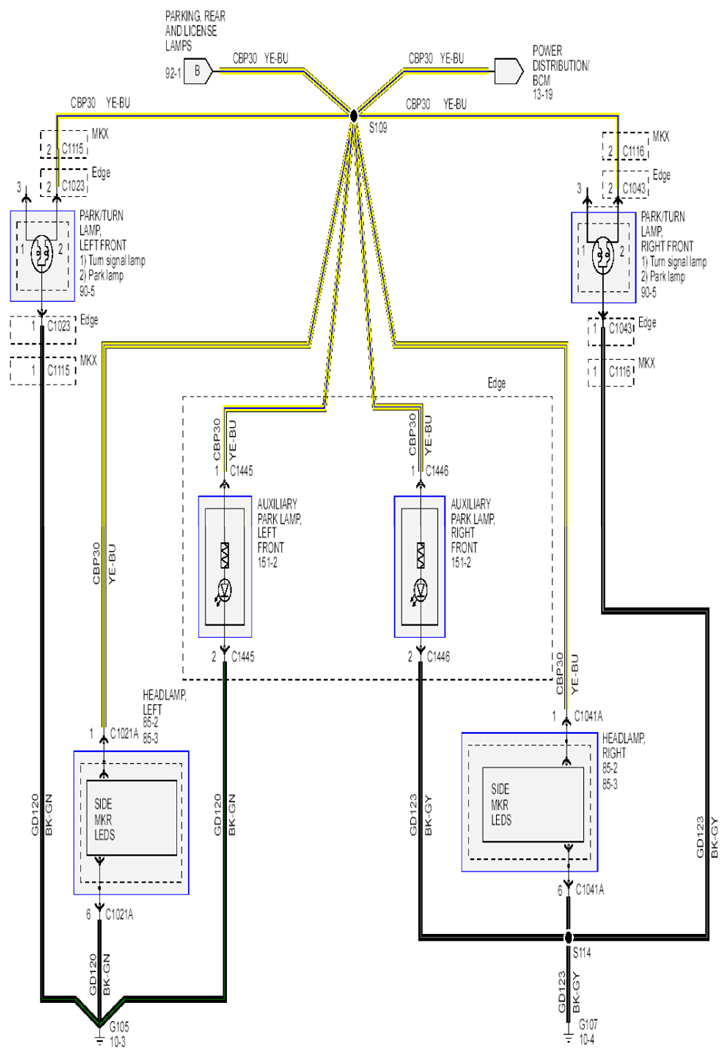

Fig 3: Parking, Rear and License Lamps Circuit Diagram - MKX (3 Of 3)

Courtesy of FORD MOTOR CO.
