Parking, Rear and License Lamps: Edge

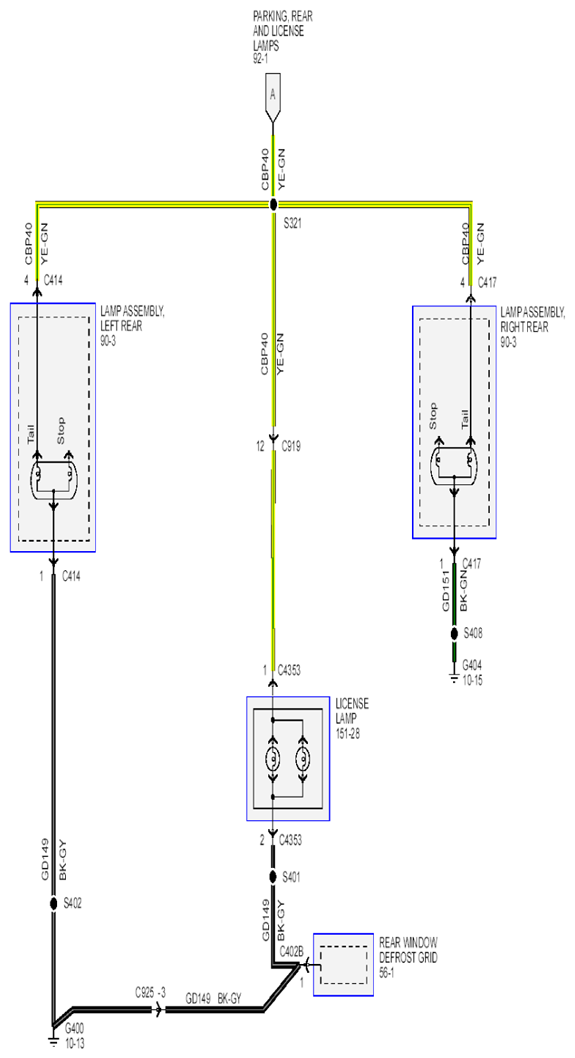

Fig 1: Parking, Rear and License Lamps Circuit Diagram (Edge)

G07854765

Courtesy of FORD MOTOR CO.
