Interior Lamps
>>
With Ambient Lighting P MKX
With Ambient Lighting P MKX

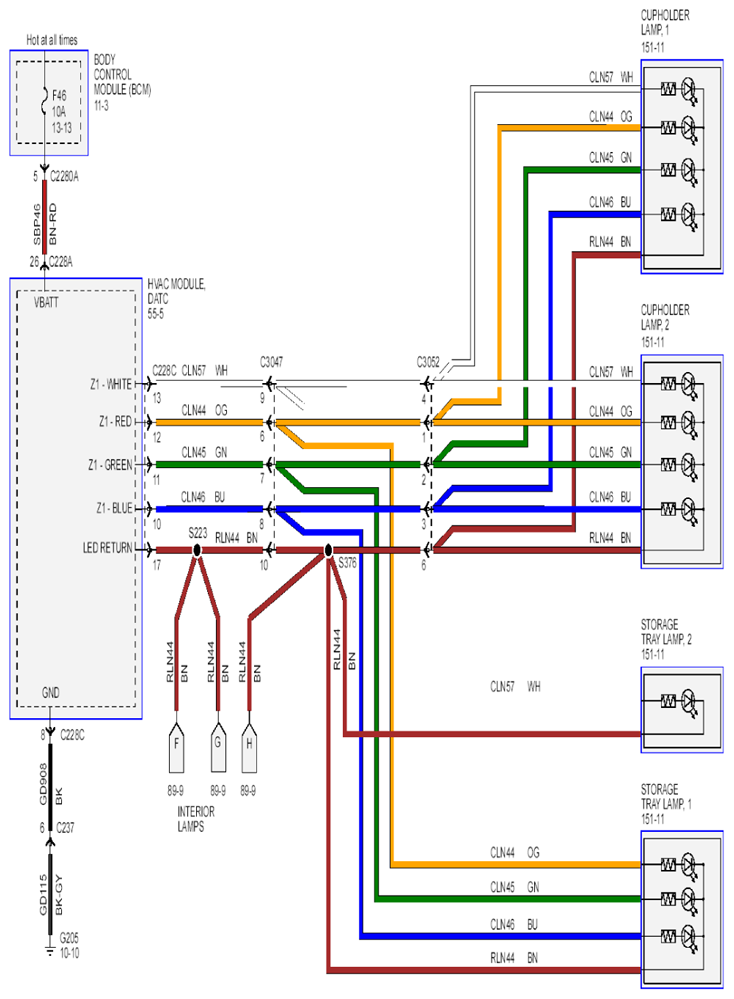

Fig 1: Interior Lamps Circuit Diagram (With Ambient Lighting P MKX)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
