Edge SEL, FWD
>>
Repair and Diagnosis (Single Page)
>>
Quick Lookups
>>
Wiring Diagrams
>>
OEM Wiring Diagrams
>>
Interior Lamps
>>
With Ambient Lighting - MKX
With Ambient Lighting - MKX

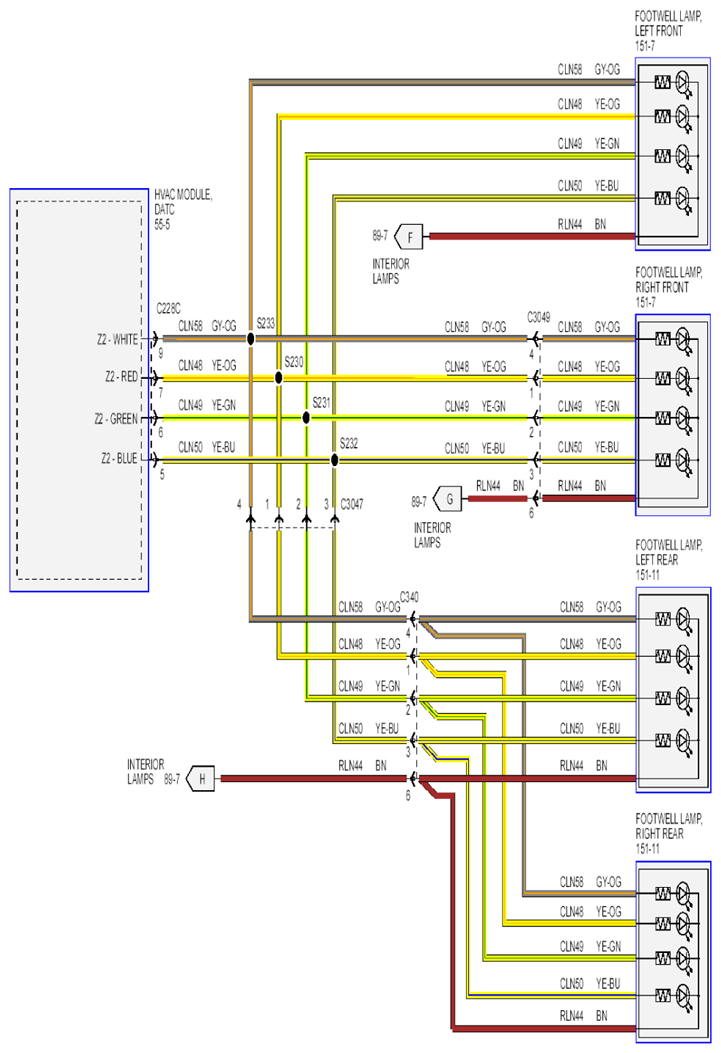

Fig 1: Interior Lamps Circuit Diagram (With Ambient Lighting - MKX)
