Edge SEL, FWD
>>
Repair and Diagnosis (Single Page)
>>
Quick Lookups
>>
Wiring Diagrams
>>
OEM Wiring Diagrams
>>
Headlamps_Autolamps
>>
With Adaptive Headlamps
With Adaptive Headlamps

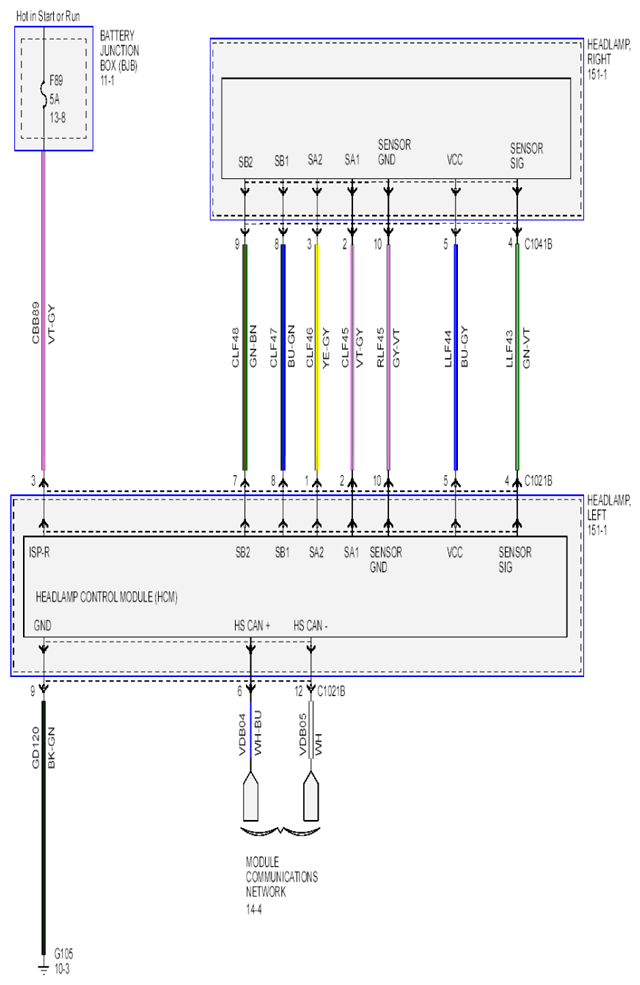

Fig 1: HID Headlamps Circuit Diagram (With Adaptive Headlamps)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
