G100, G101, G103, G109

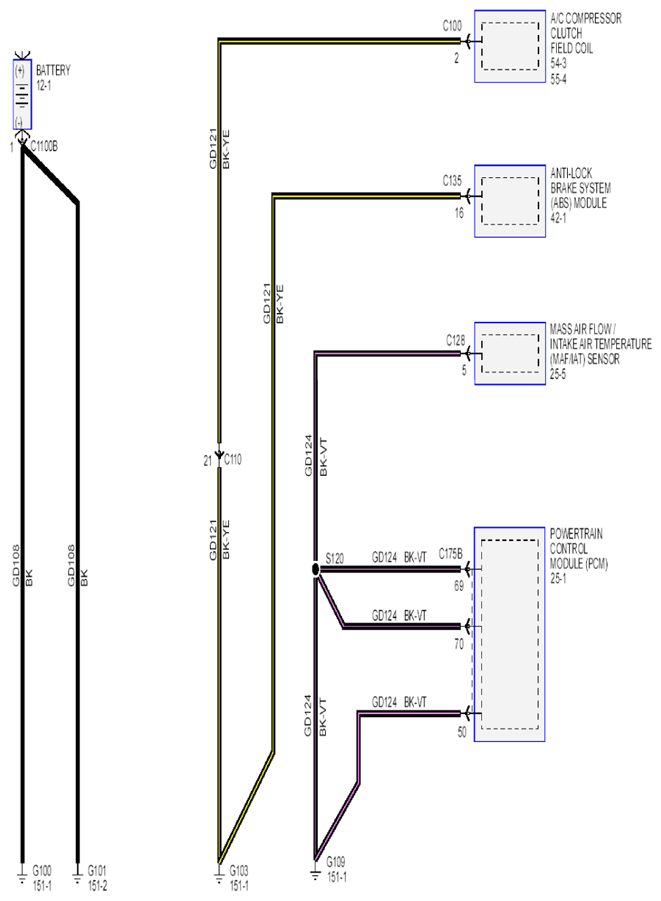

Fig 1: Ground Circuit Diagram - G100, G101, G103 And G109

G07854624

Courtesy of FORD MOTOR CO.
