Evaporative Emissions Canister Purge Valve Connector - C1195
Evaporative Emissions Canister Purge Valve Connector - C1195

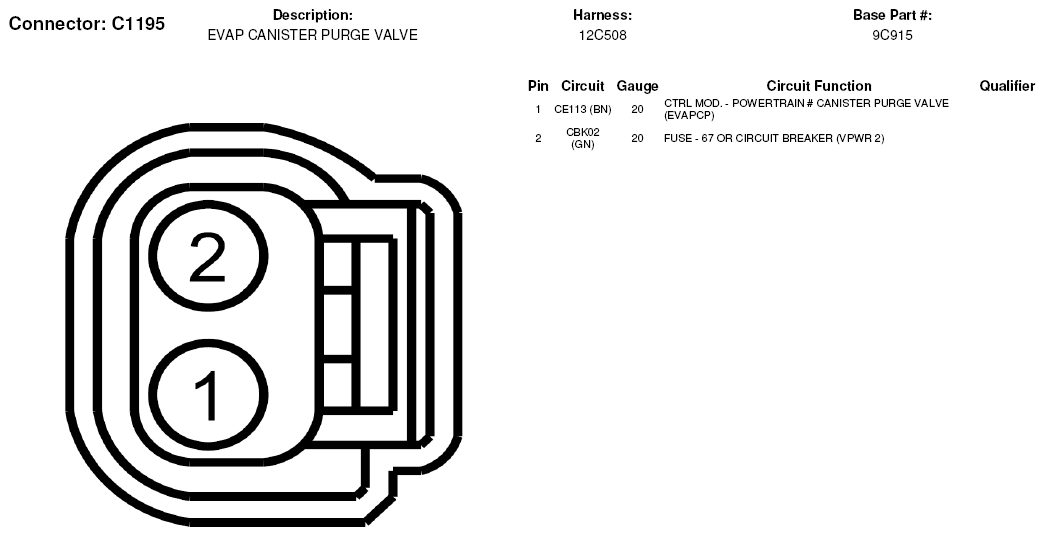

Fig 1: Evaporative Emissions Canister Purge Valve Connector End View (C1195)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
