Crankshaft Rear Seal: Installation

    NOTE: Lubricate the seal lips and bore with clean engine oil prior to installation.

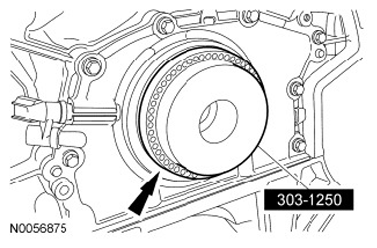

    Fig 1: Positioning Rear Main Seal Installer Onto End Of Crankshaft
    G07397950Courtesy of FORD MOTOR CO.
  1. Position the Rear Main Seal Installer onto the end of the crankshaft and slide a new crankshaft rear seal onto the tool.
  2. Using the Rear Main Seal Installer and Handle, install the new crankshaft rear seal.

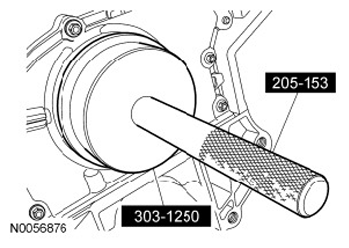

    Fig 2: Installing Crankshaft Rear Seal
    G07397951Courtesy of FORD MOTOR CO.
  3. Install the crankshaft sensor ring.
  4. Install the flexplate. For additional information, refer to FLEXPLATE  in this service information.
