F8, F57, F58, F59, F63, F64, F65, F78

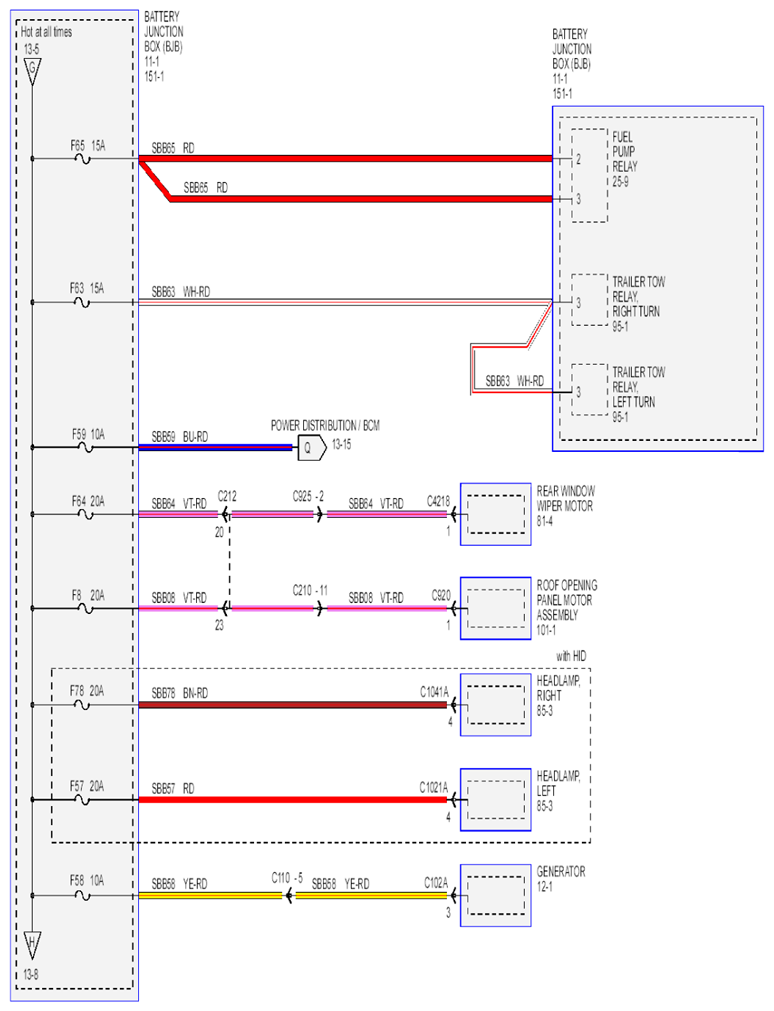

Fig 1: Power Distribution Circuit Diagram - F8, F57, F58, F59, F63, F64, F65, F78

G07854646

Courtesy of FORD MOTOR CO.
