F79, F87, F89, F90, F91, F92, F93, F94

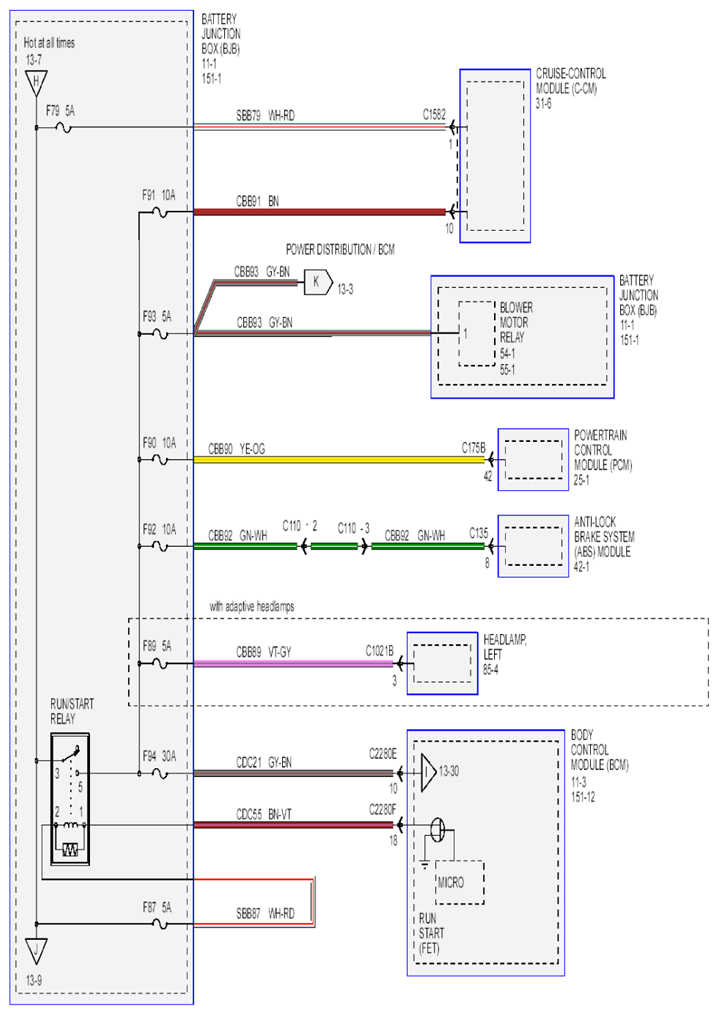

Fig 1: Power Distribution Circuit Diagram - F79, F87, F89, F90, F91, F92, F93, F94

G07854647

Courtesy of FORD MOTOR CO.
