Turn Signal_Stop_Hazard Lamps: Edge

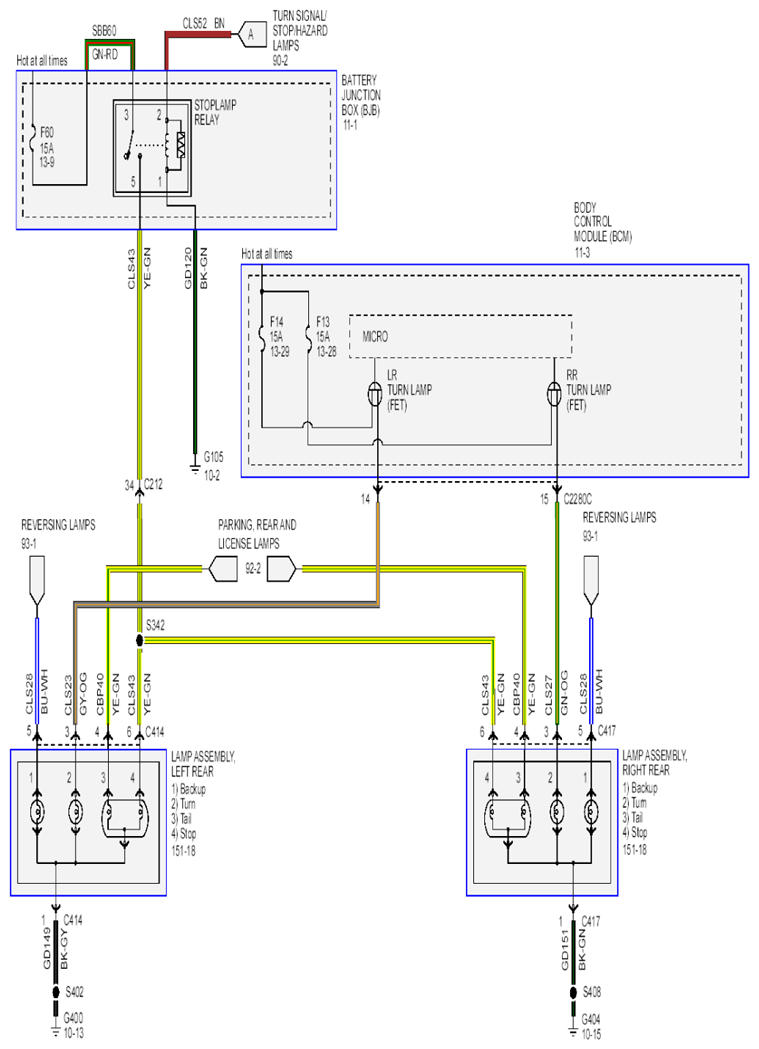

Fig 1: Turn Signal_Stop_Hazard Lamps Circuit Diagram (Edge)

G07854761

Courtesy of FORD MOTOR CO.
