Repair and Diagnosis (Single Page)
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams
>>
Roof Opening Panel
Roof Opening Panel

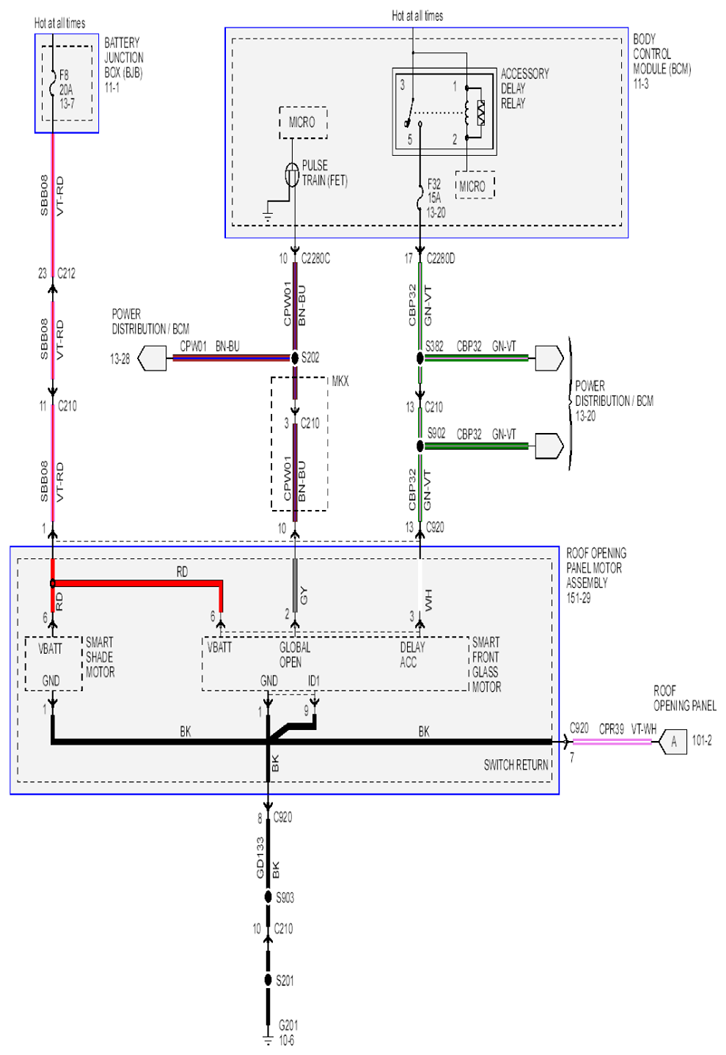

Fig 1: Roof Opening Panel Circuit Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

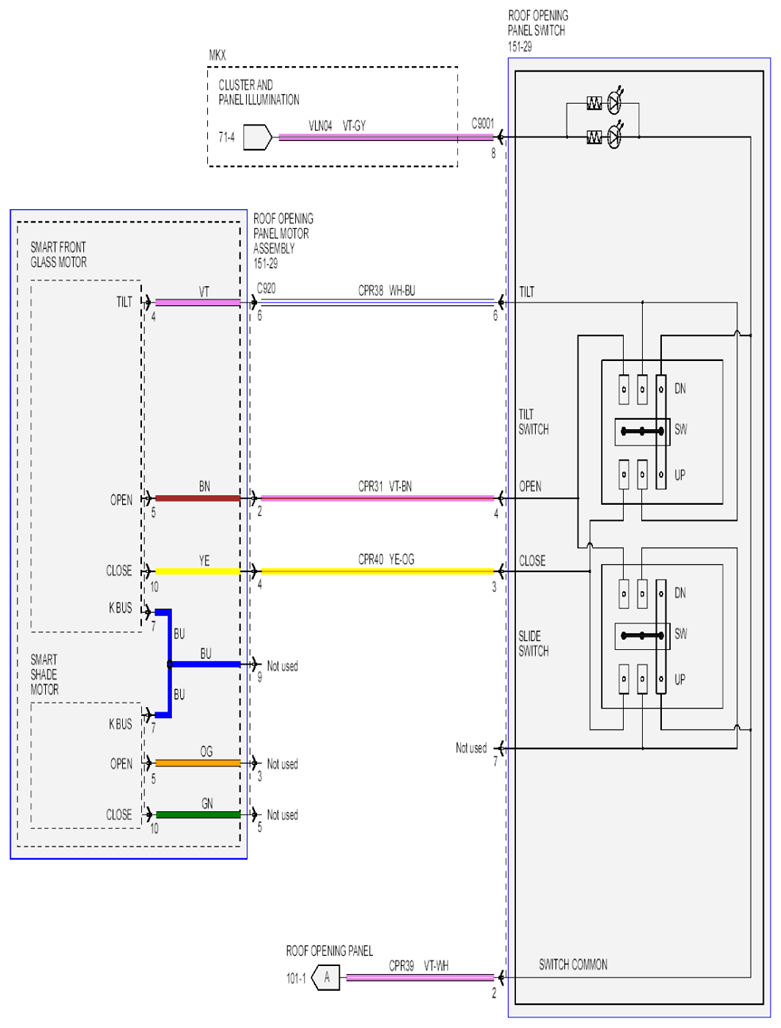

Fig 2: Roof Opening Panel Circuit Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
