Reversing Lamps
Reversing Lamps

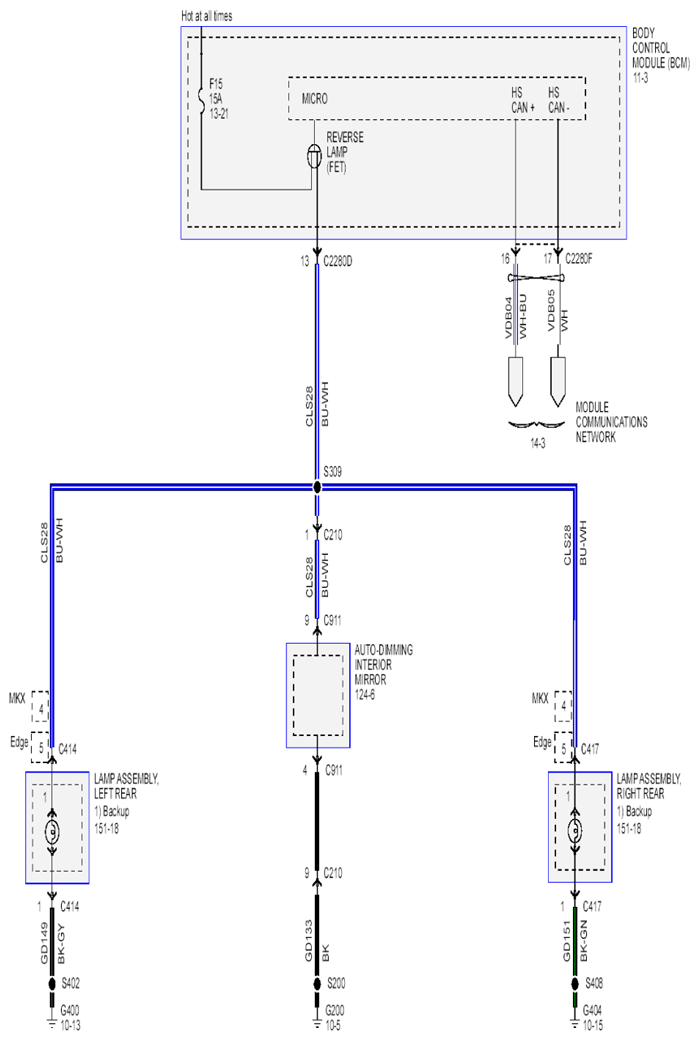

Fig 1: Reversing Lamps Circuit Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
