Power Door Locks: Edge

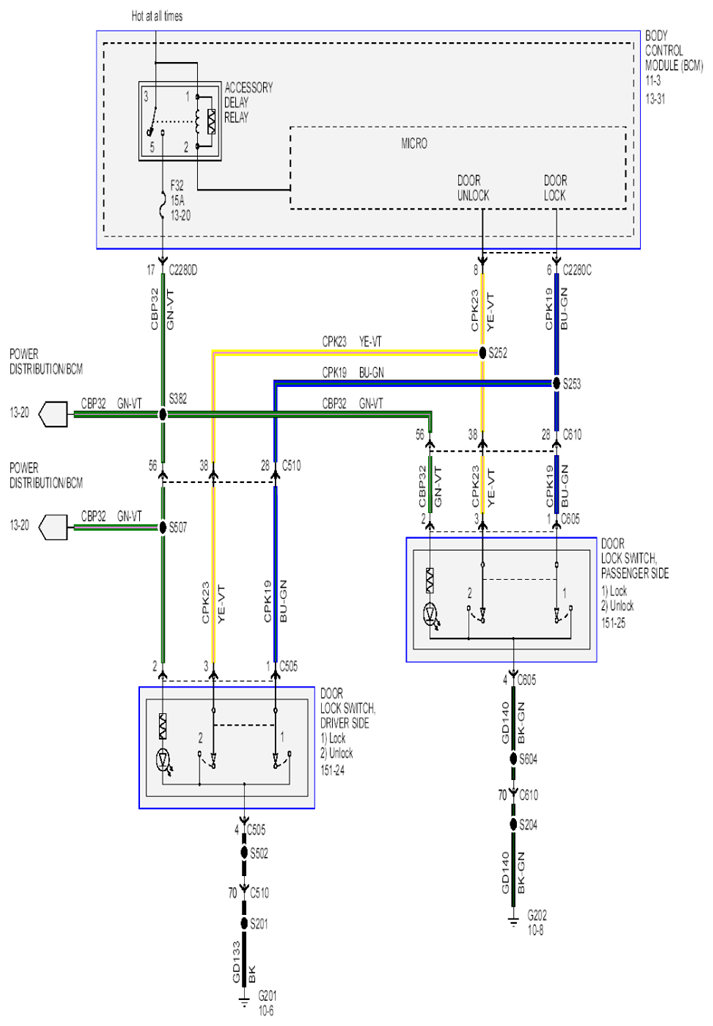

Fig 1: Power Door Locks Circuit Diagram - Edge (1 Of 3)
G07854783Courtesy of FORD MOTOR CO.
Fig 2: Power Door Locks Circuit Diagram - Edge (2 Of 3)
G07854784Courtesy of FORD MOTOR CO.
Fig 3: Power Door Locks Circuit Diagram - Edge (3 Of 3)
G07854785Courtesy of FORD MOTOR CO.
