Power Distribution_BCM
>>
F58, Mega 200A, Mega 120A
F58, Mega 200A, Mega 120A

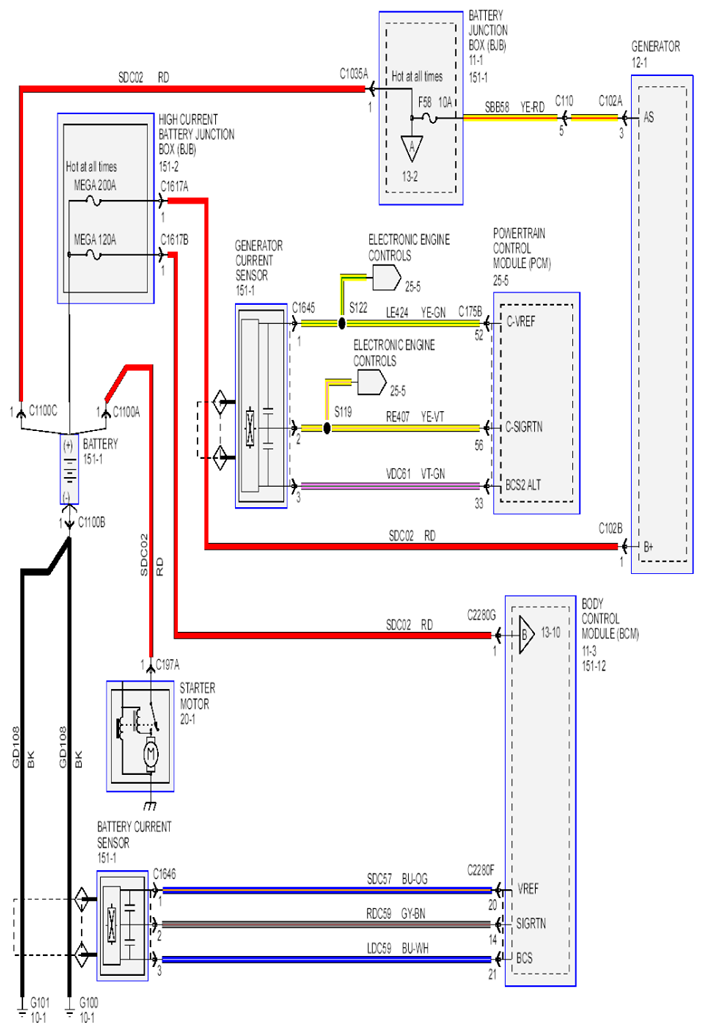

Fig 1: Power Distribution Circuit Diagram - F58, MEGA 200A, MEGA 120A
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
