Power Distribution_BCM
>>
F4, F5, F7, F28, F30, F39, F40, F43
F4, F5, F7, F28, F30, F39, F40, F43

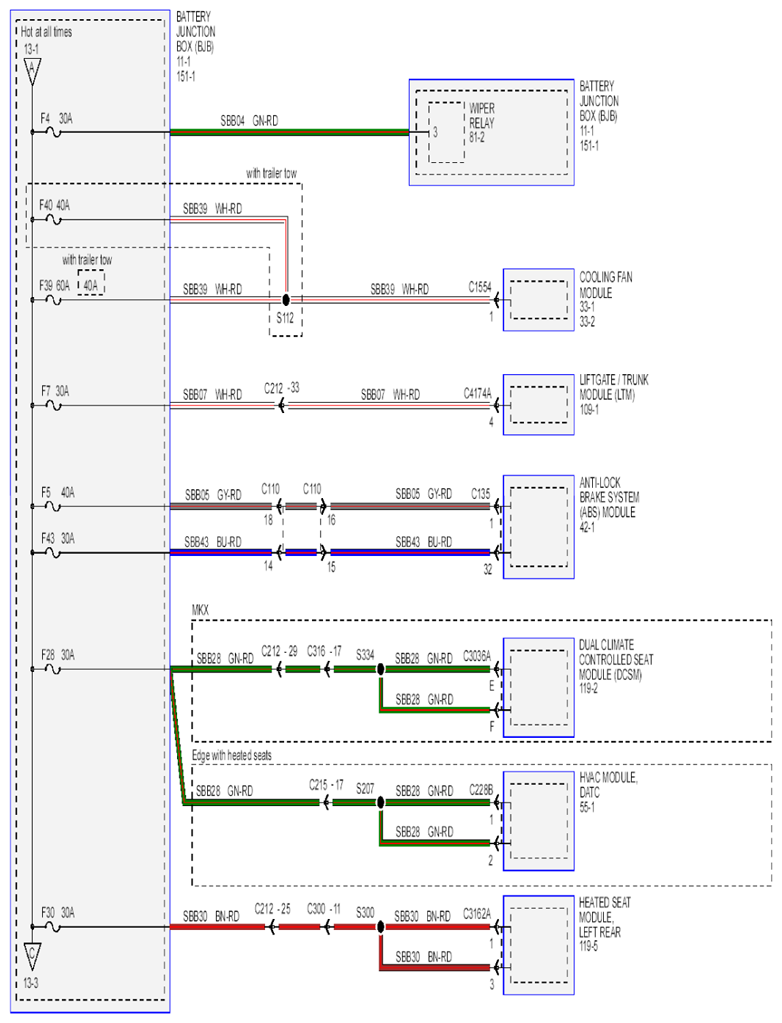

Fig 1: Power Distribution Circuit Diagram - F4, F5, F7, F28, F30, F39, F40, F43
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
