F33, F34, F35, F36, F37, F41, F42

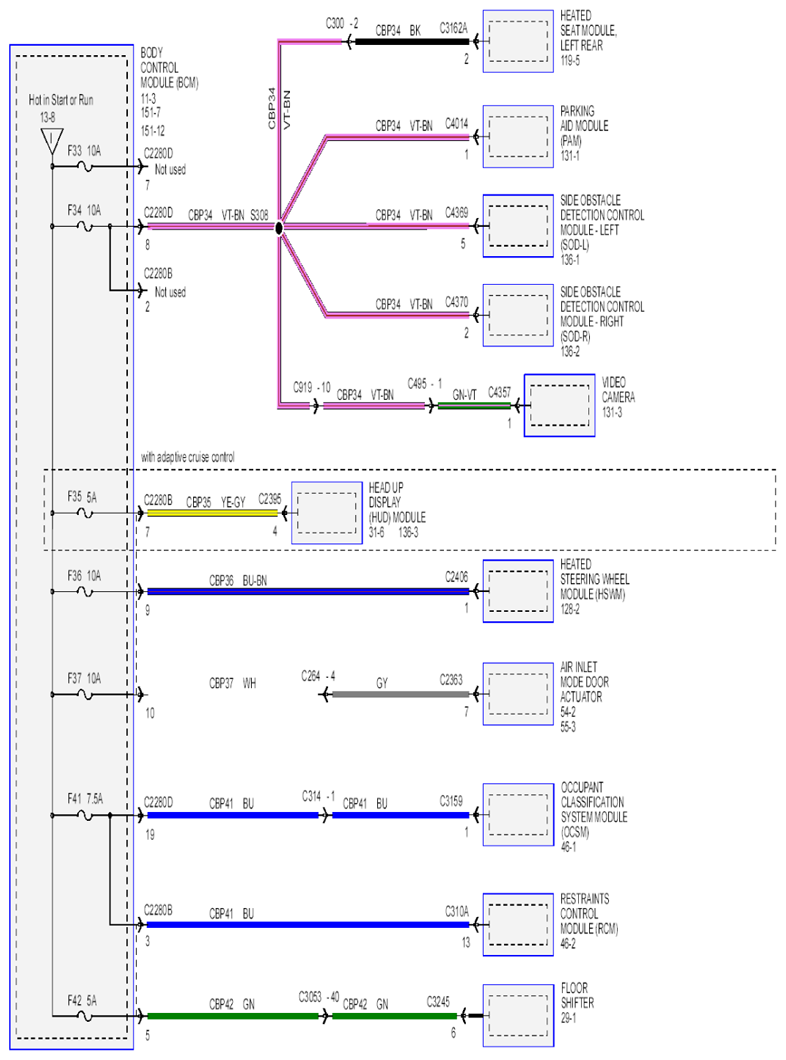

Fig 1: Power Distribution Circuit Diagram - F33, F34, F35, F36, F37, F41, F42 (1 Of 5)
G07854669Courtesy of FORD MOTOR CO.

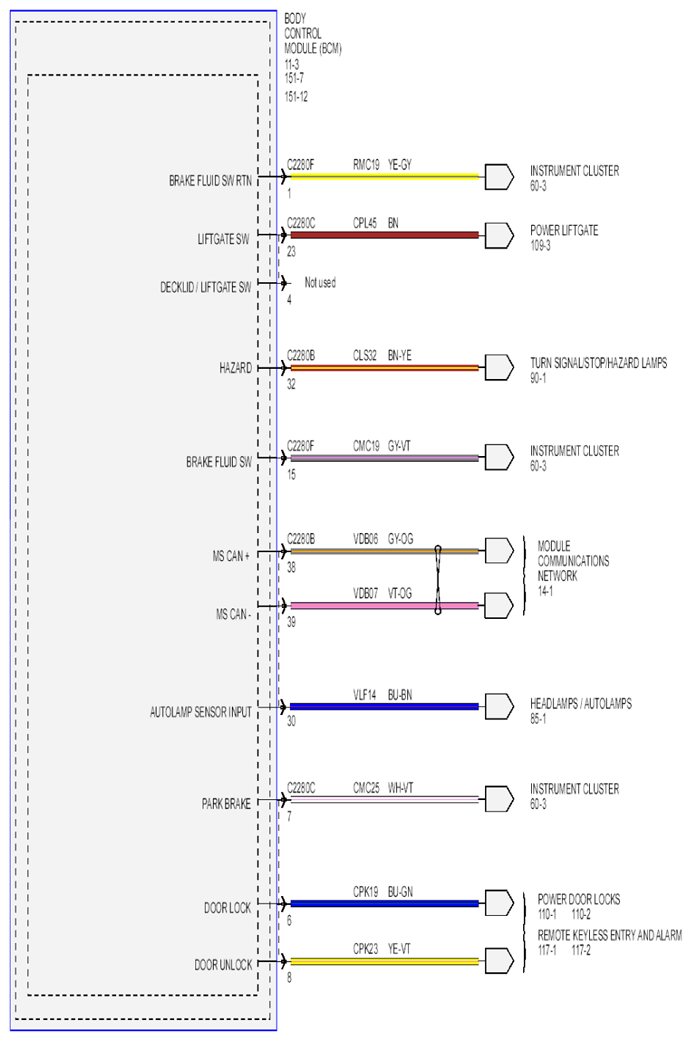

Fig 2: Power Distribution Circuit Diagram - F33, F34, F35, F36, F37, F41, F42 (2 Of 5)
G07854670Courtesy of FORD MOTOR CO.

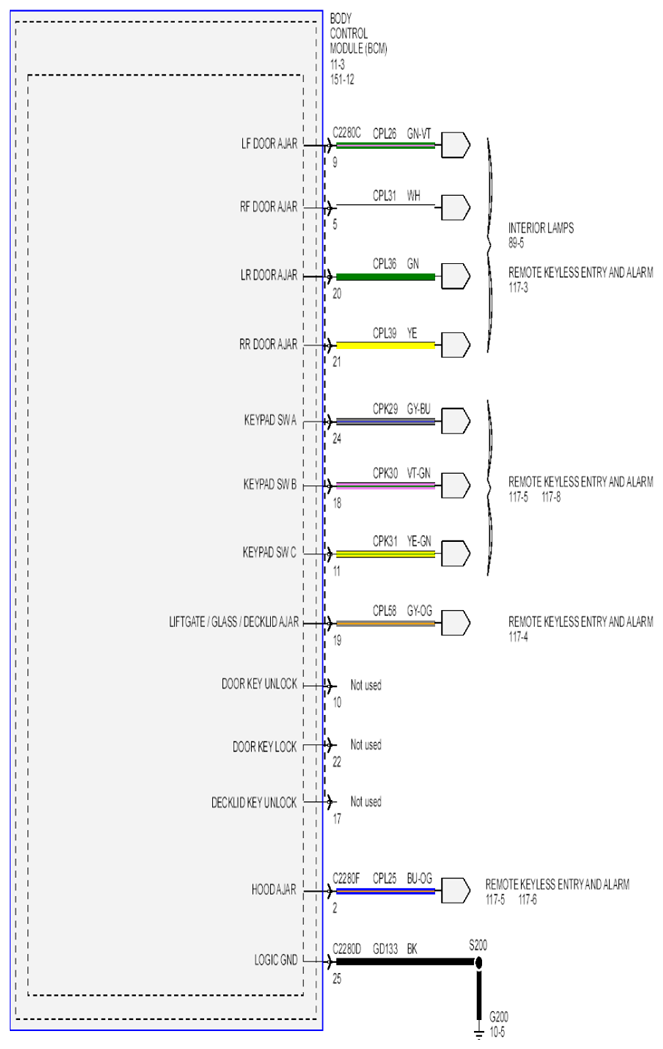

Fig 3: Power Distribution Circuit Diagram - F33, F34, F35, F36, F37, F41, F42 (3 Of 5)
G07854671Courtesy of FORD MOTOR CO.

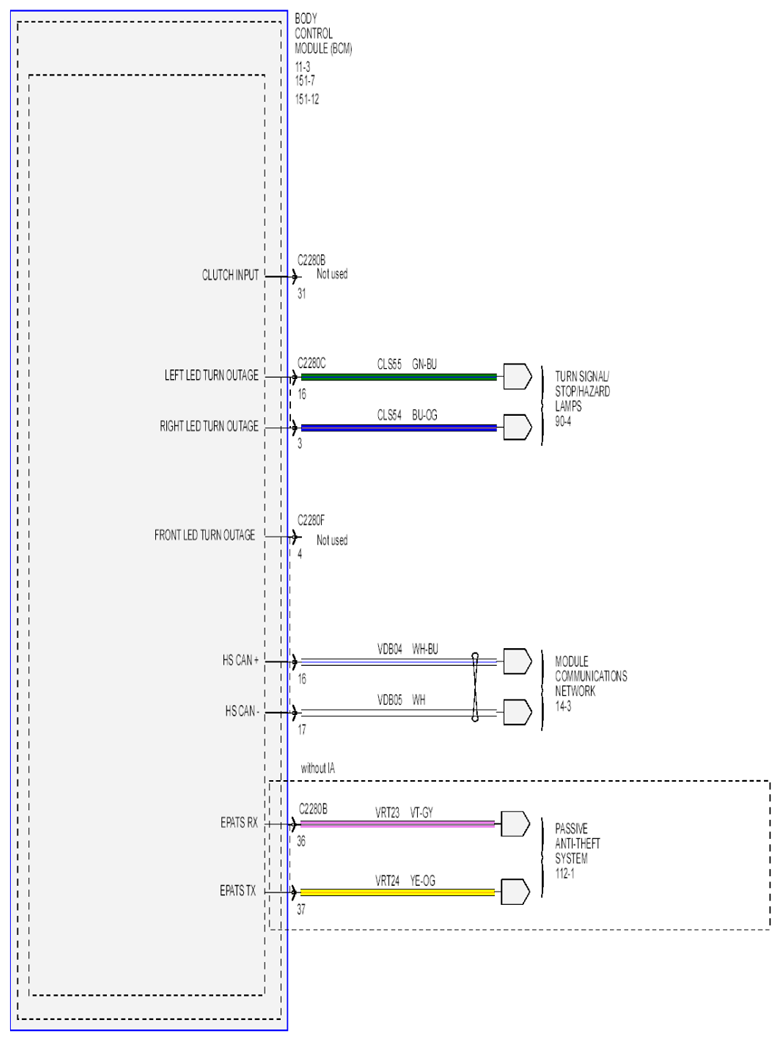

Fig 4: Power Distribution Circuit Diagram - F33, F34, F35, F36, F37, F41, F42 (4 Of 5)
G07854672Courtesy of FORD MOTOR CO.

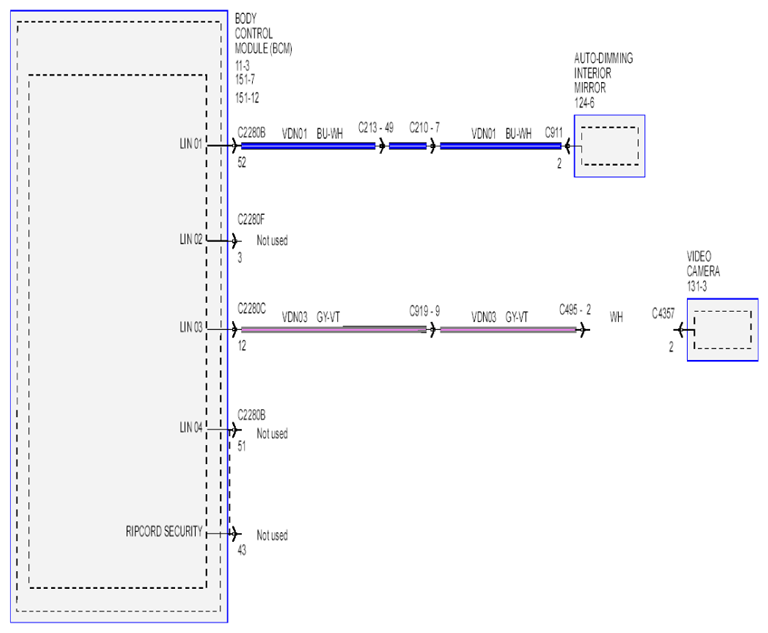

Fig 5: Power Distribution Circuit Diagram - F33, F34, F35, F36, F37, F41, F42 (4 Of 5)
G07854673Courtesy of FORD MOTOR CO.
