F1, F2, F3, F5, F6, F7, F8, F21, F26

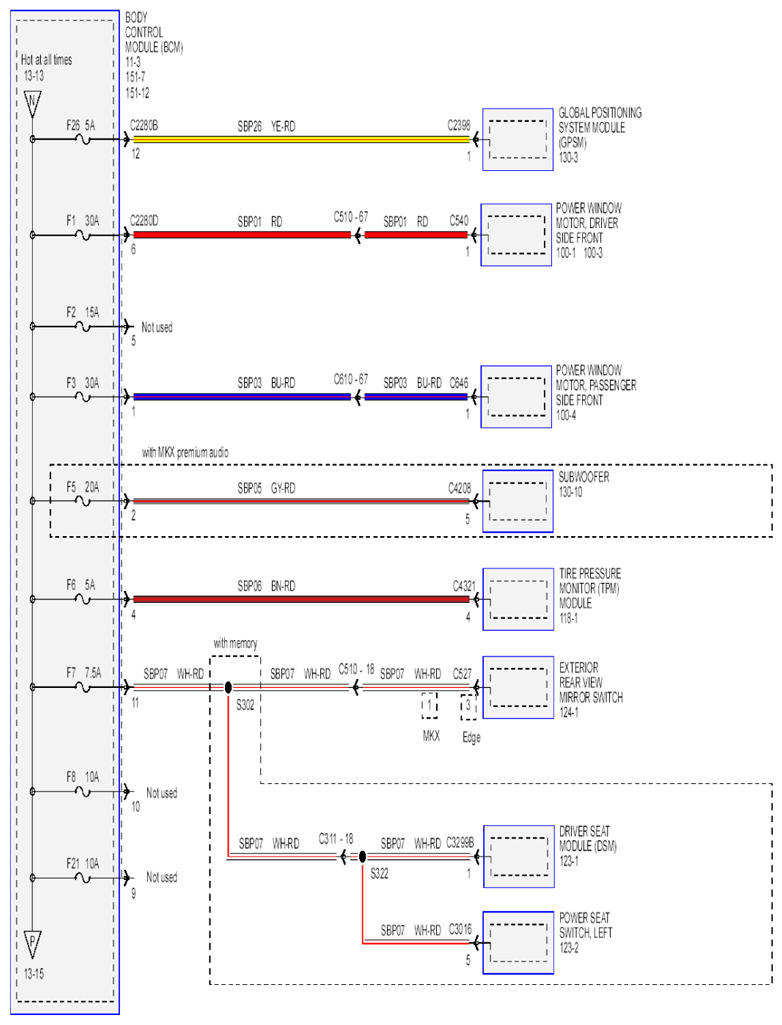

Fig 1: Power Distribution Circuit Diagram - F1, F2, F3, F5, F6, F7, F8, F21, F26

G07854653

Courtesy of FORD MOTOR CO.
