Instrument Cluster
Instrument Cluster

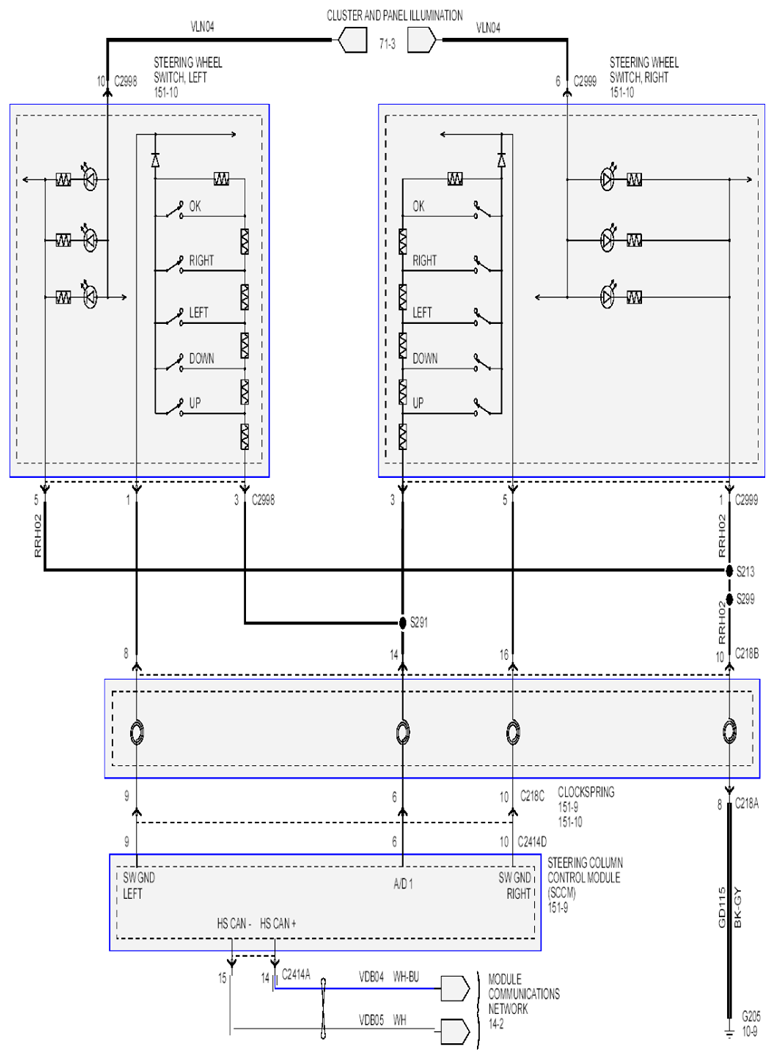

Fig 1: Instrument Cluster Circuit Diagram (1 Of 5)
Courtesy of FORD MOTOR CO.

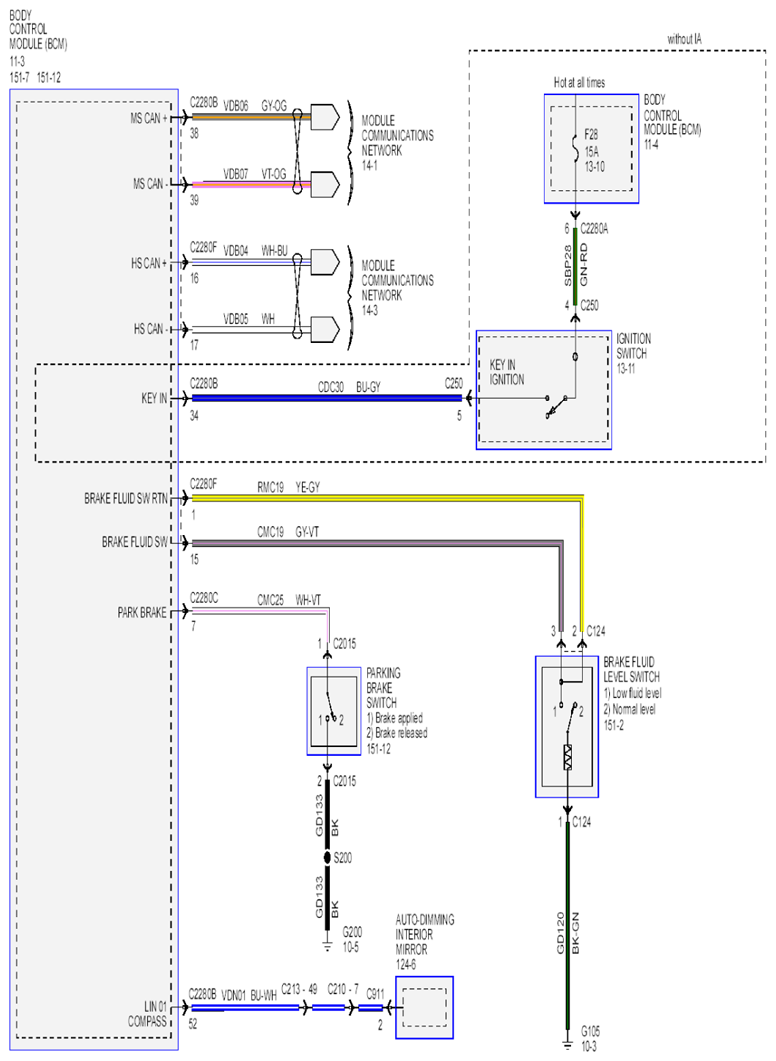

Fig 2: Instrument Cluster Circuit Diagram (2 Of 5)
Courtesy of FORD MOTOR CO.

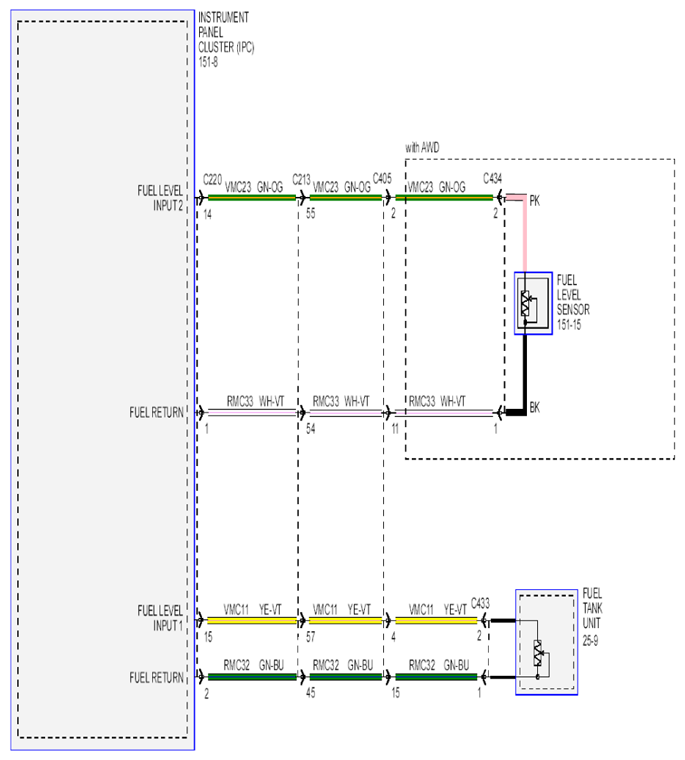

Fig 3: Instrument Cluster Circuit Diagram (3 Of 5)
Courtesy of FORD MOTOR CO.

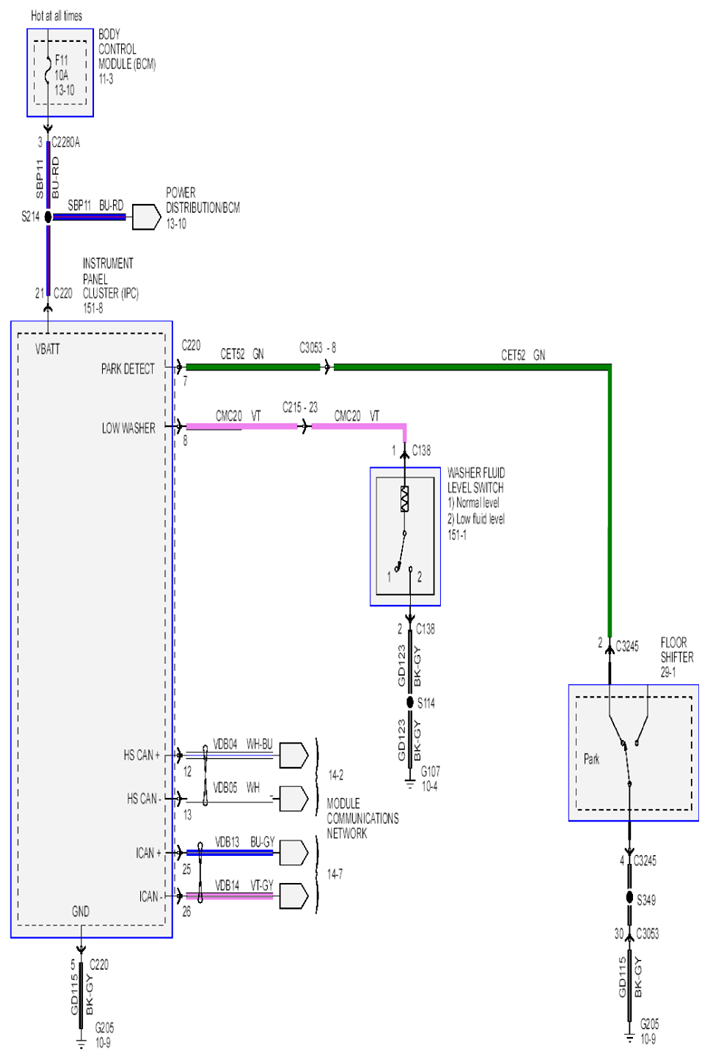

Fig 4: Instrument Cluster Circuit Diagram (4 Of 5)
Courtesy of FORD MOTOR CO.

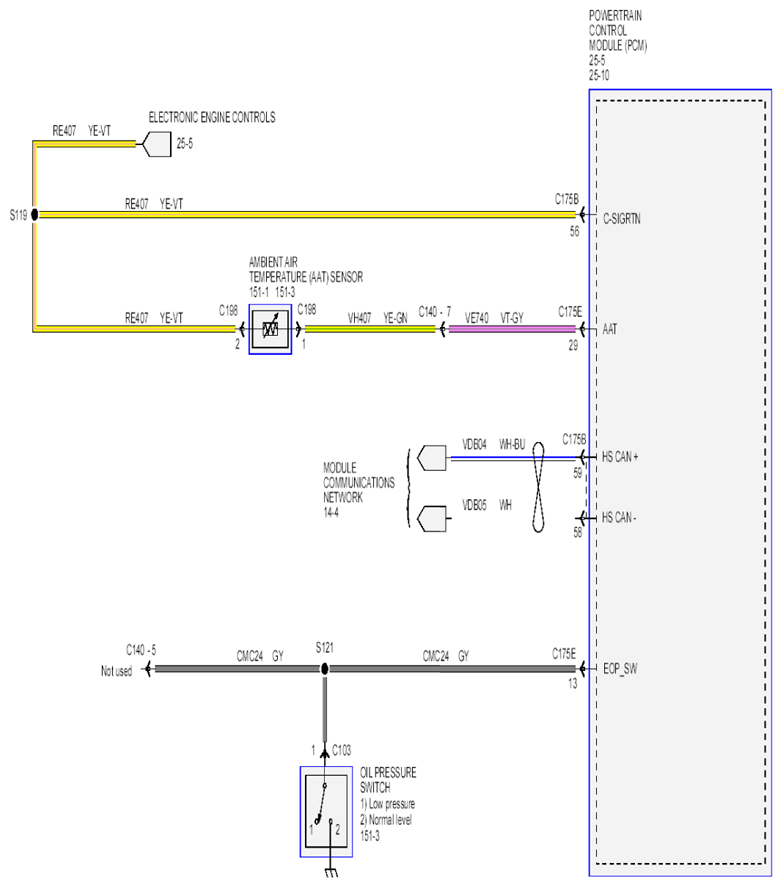

Fig 5: Instrument Cluster Circuit Diagram (5 Of 5)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
