Edge SEL, FWD
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams
>>
Horn_Cigar Lighter
Horn_Cigar Lighter

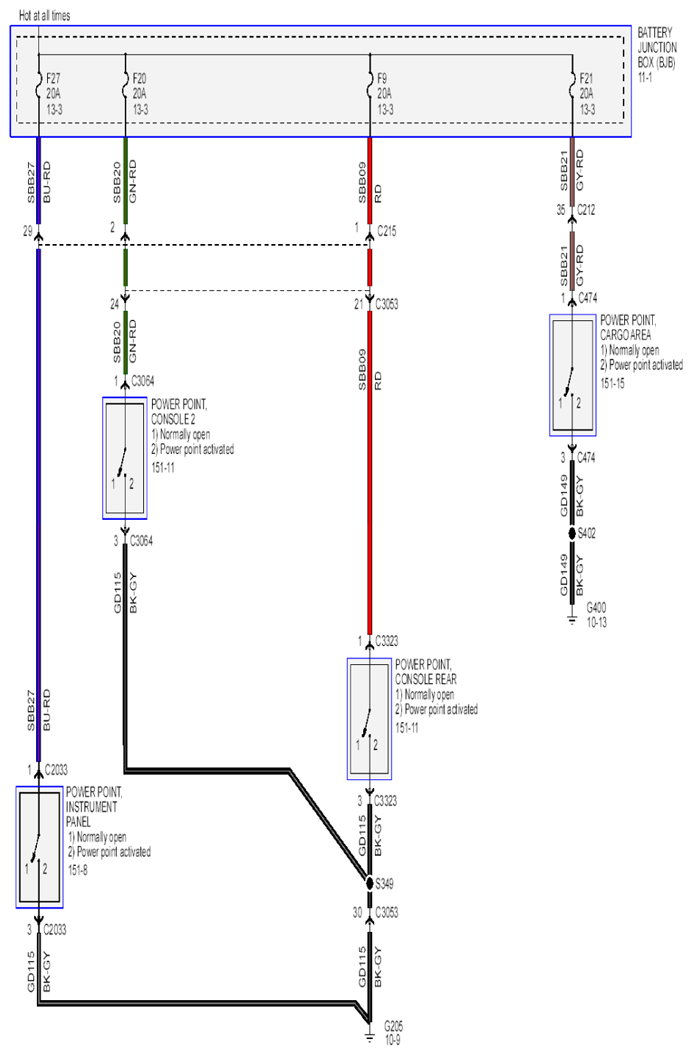

Fig 1: Horn_Cigar Lighter Circuit Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

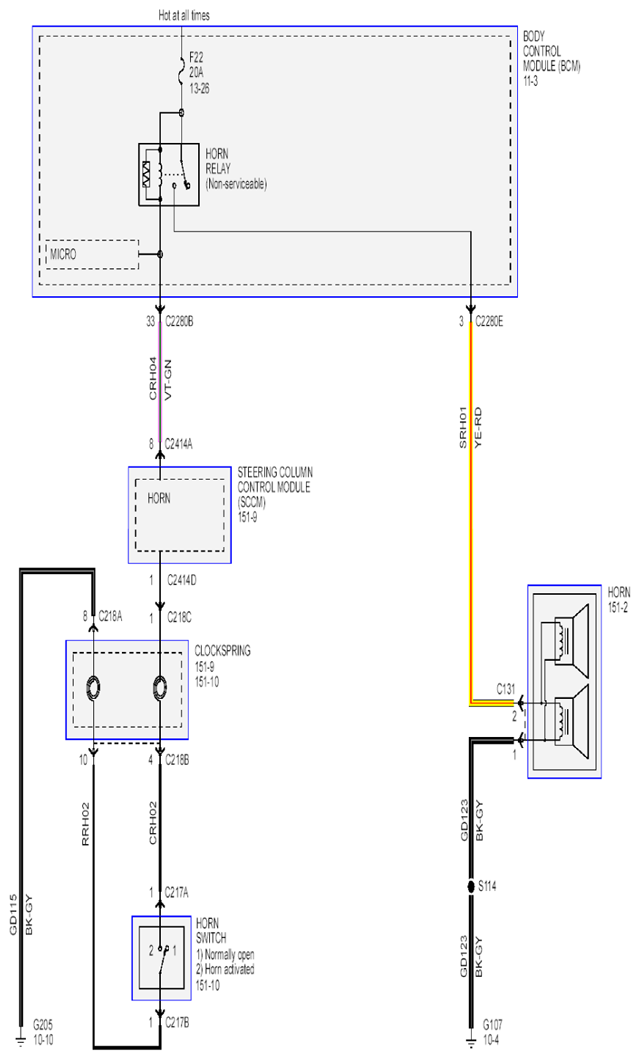

Fig 2: Horn_Cigar Lighter Circuit Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
