Home >> Ford >> 2011 >> Edge SEL, FWD >> Repair and Diagnosis (Single Page) >> Electrical >> Motors, Switches, Relays >> OEM Wiring Diagrams >> Headlamps_Autolamps >> Notes

OEM Wiring Diagrams: Headlamps_Autolamps: Notes

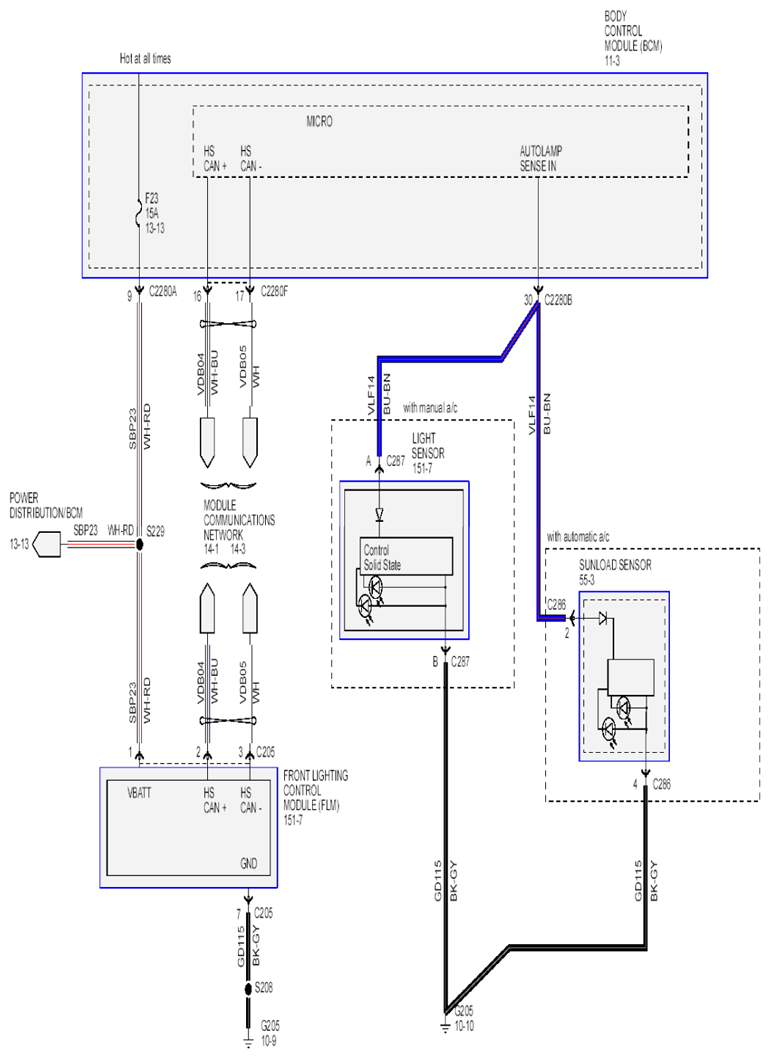

Fig 1: Headlamps_Autolamps Circuit Diagram

G07854743

Courtesy of FORD MOTOR CO.
