OEM Wiring Diagrams: Ground: G400

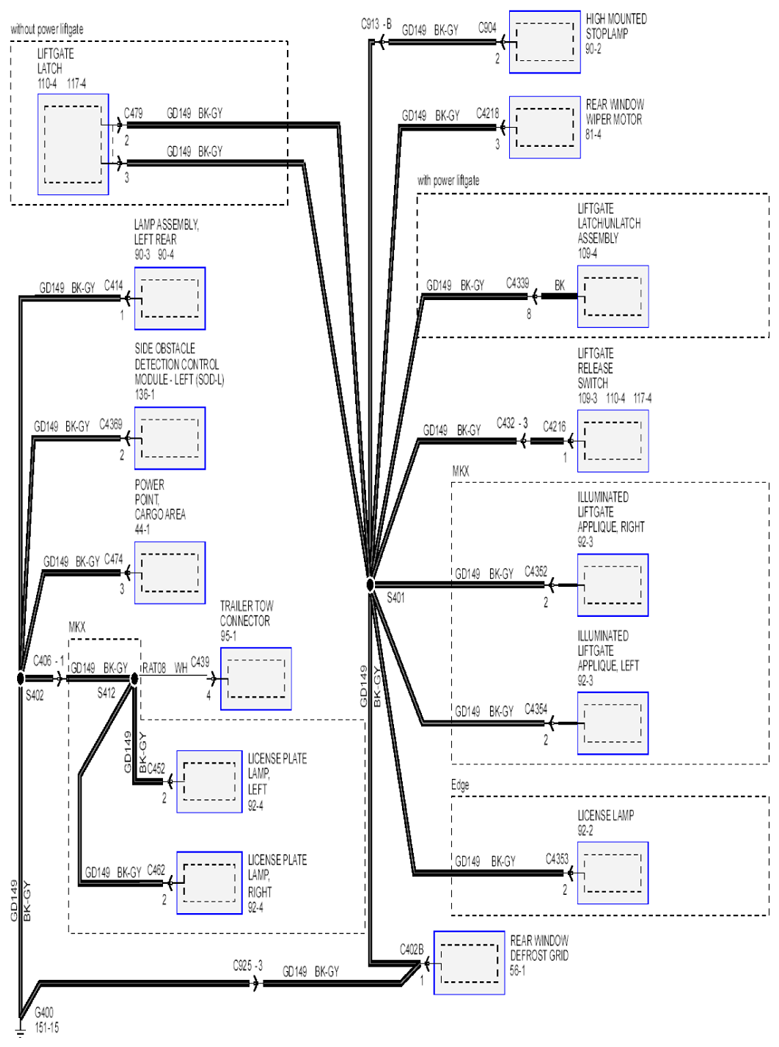

Fig 1: Ground Circuit Diagram - G400

G07854636

Courtesy of FORD MOTOR CO.
