OEM Wiring Diagrams: Ground: G302

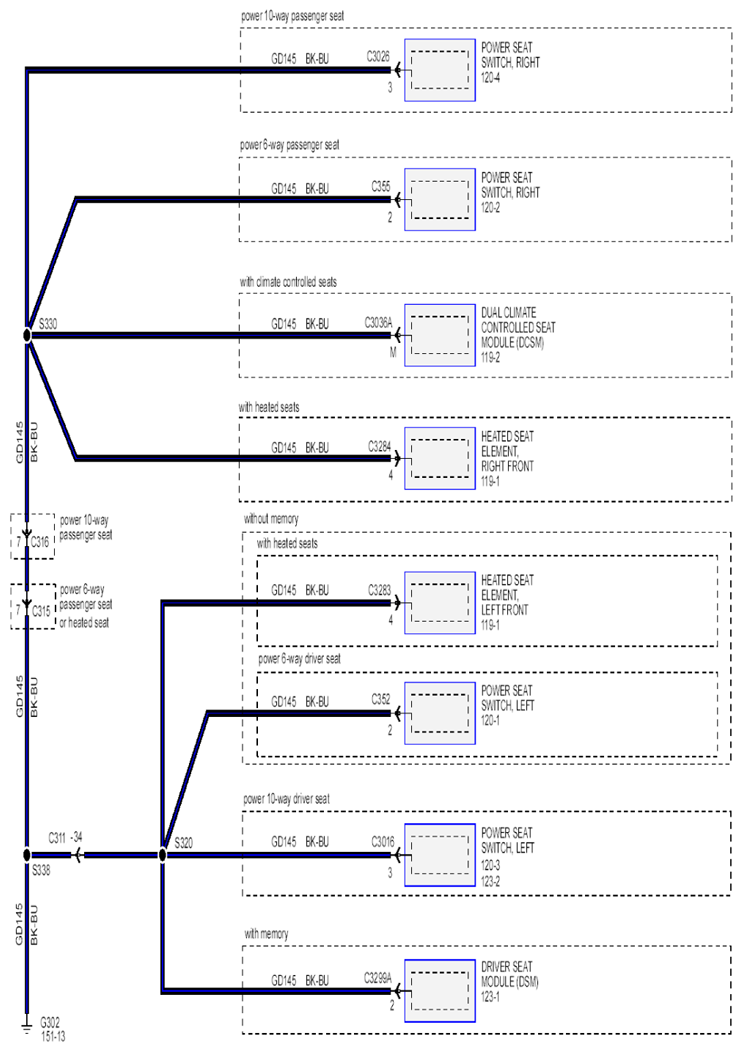

Fig 1: Ground Circuit Diagram - G302

G07854635

Courtesy of FORD MOTOR CO.
