OEM Wiring Diagrams: Ground: G206

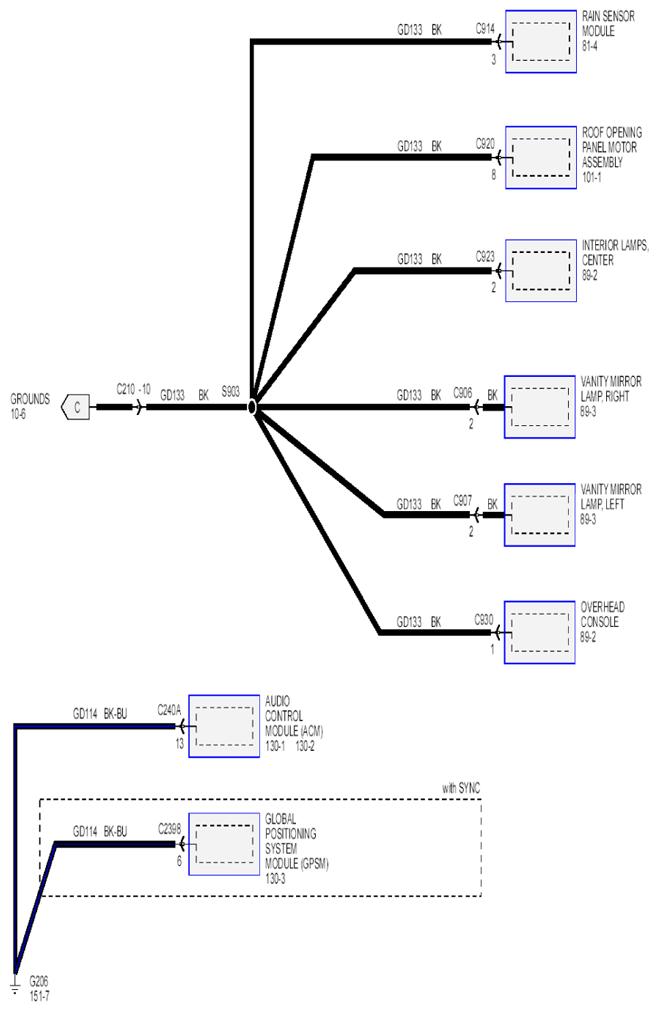

Fig 1: Ground Circuit Diagram - G206

G07854630

Courtesy of FORD MOTOR CO.
