Motors, Switches, Relays
>>
OEM Wiring Diagrams
>>
Ground
>>
G205
OEM Wiring Diagrams: Ground: G205

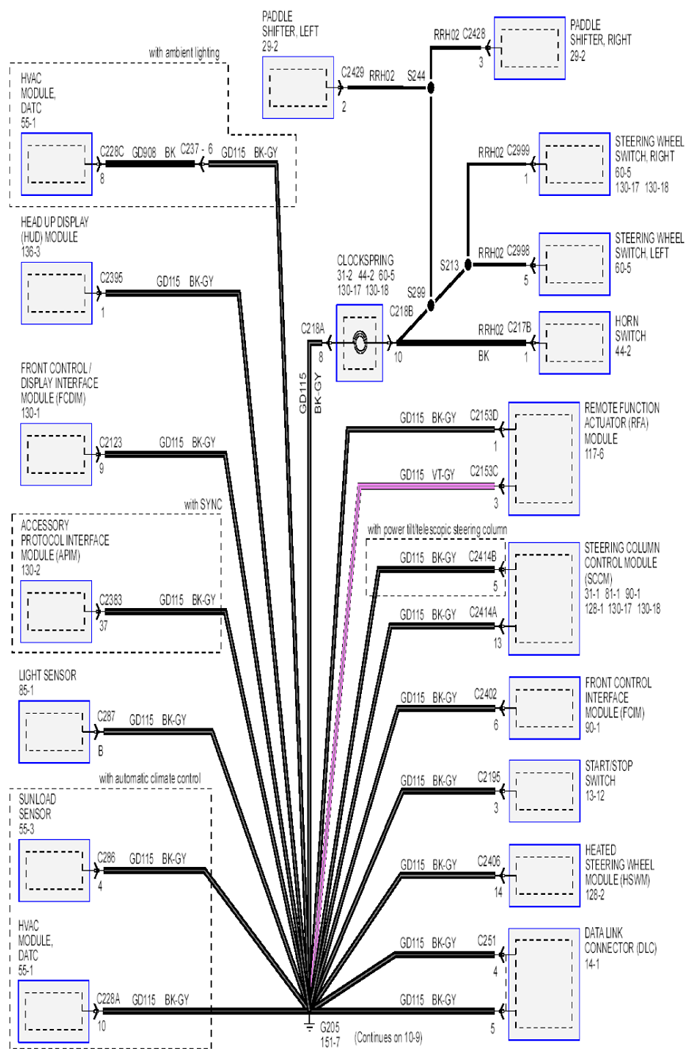

Fig 1: Ground Circuit Diagram - G205 (1 Of 2)
Courtesy of FORD MOTOR CO.

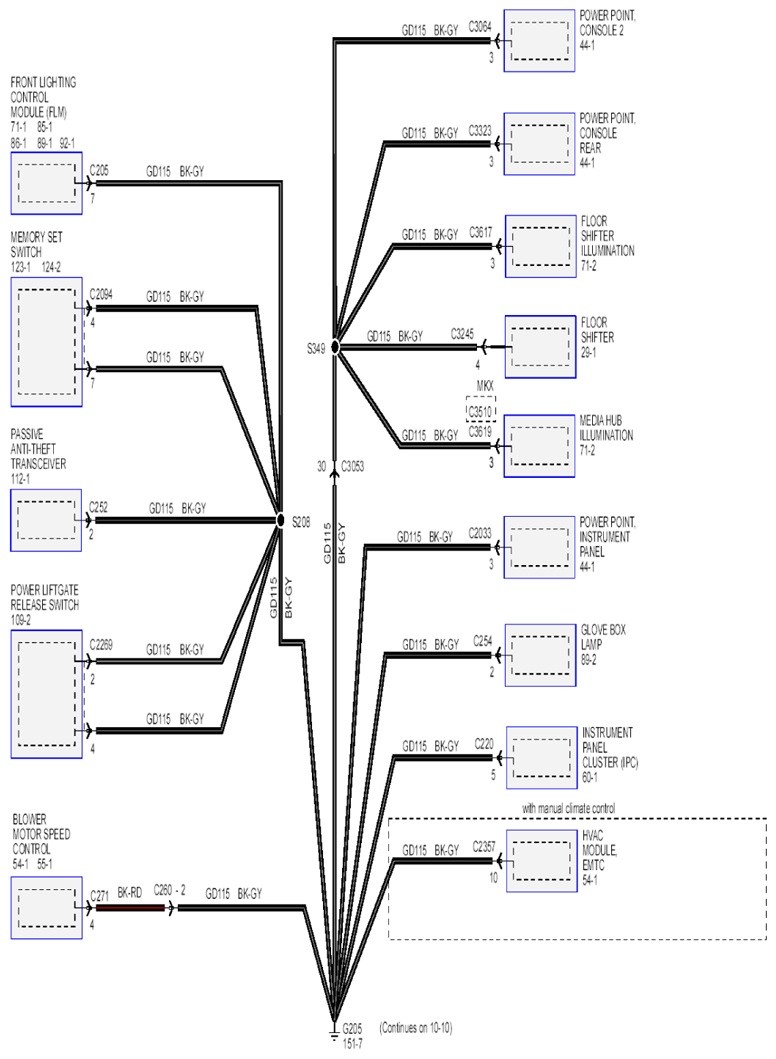

Fig 1: Ground Circuit Diagram - G205 (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
