OEM Wiring Diagrams: Ground: G200

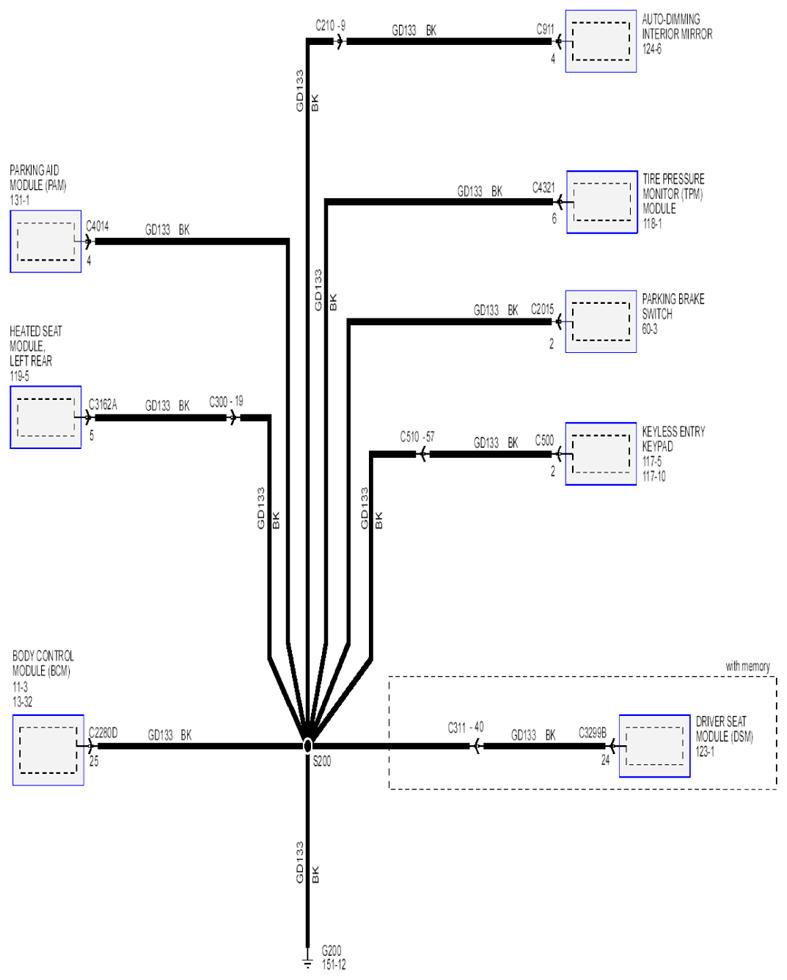

Fig 1: Ground Circuit Diagram - G200

G07854628

Courtesy of FORD MOTOR CO.
