OEM Wiring Diagrams: Ground: G107

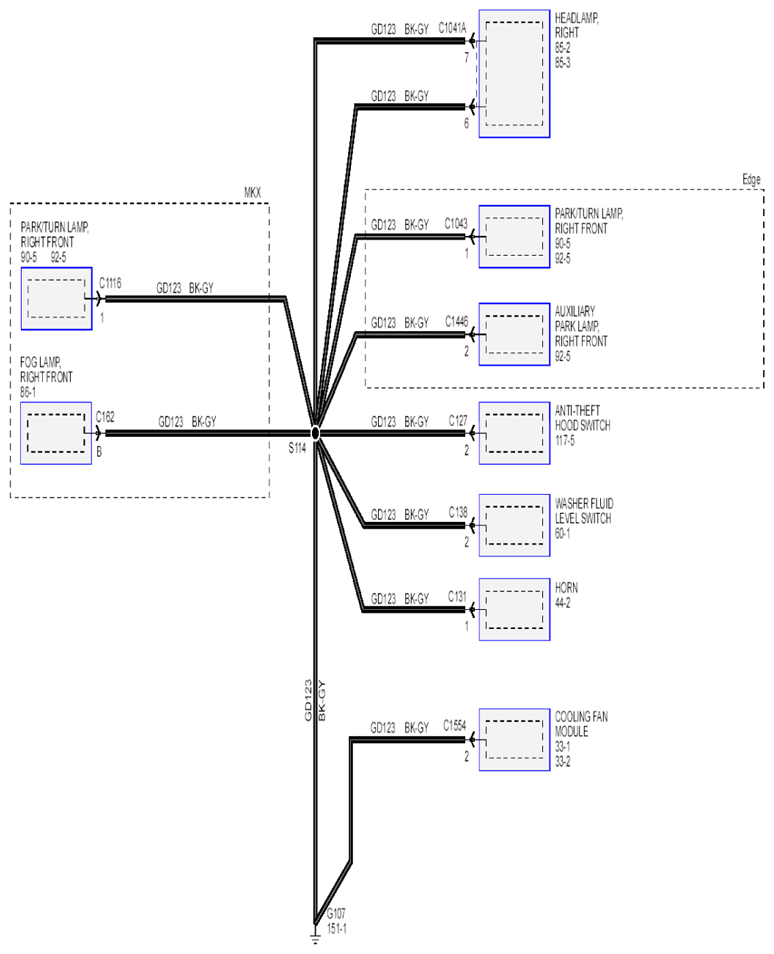

Fig 1: Ground Circuit Diagram - G107

G07854627

Courtesy of FORD MOTOR CO.
