Edge SEL, FWD
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams
>>
Ground
>>
G105
OEM Wiring Diagrams: Ground: G105

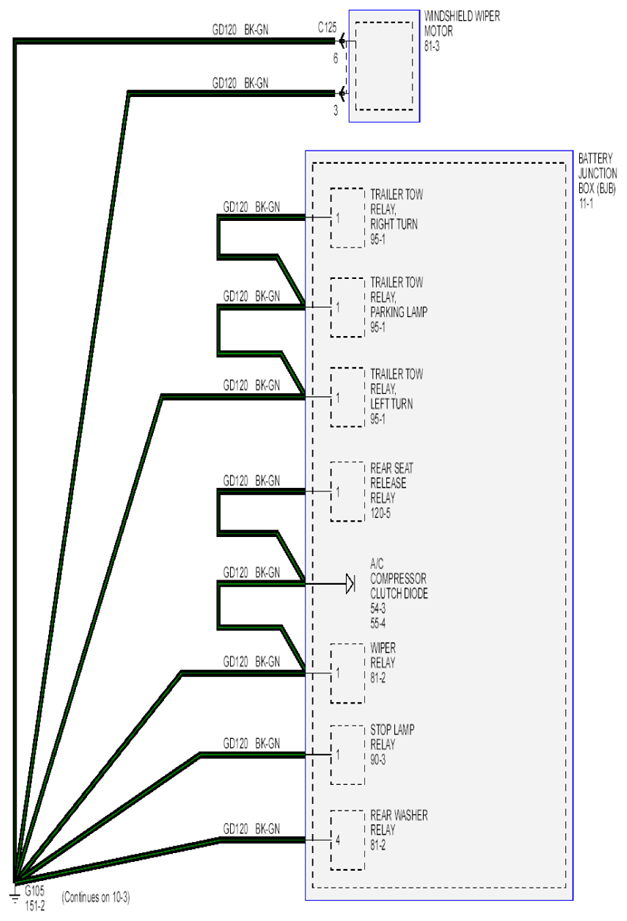

Fig 1: Ground Circuit Diagram - G105 (1 Of 2)
Courtesy of FORD MOTOR CO.

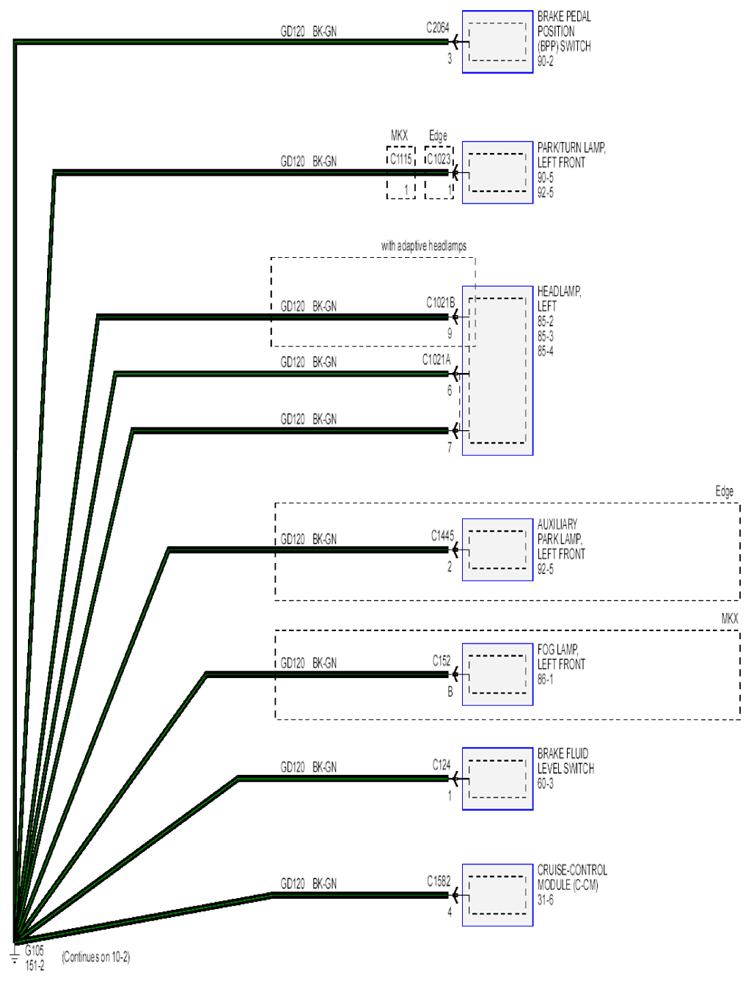

Fig 1: Ground Circuit Diagram - G105 (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
