Cluster and Panel Illumination: Notes

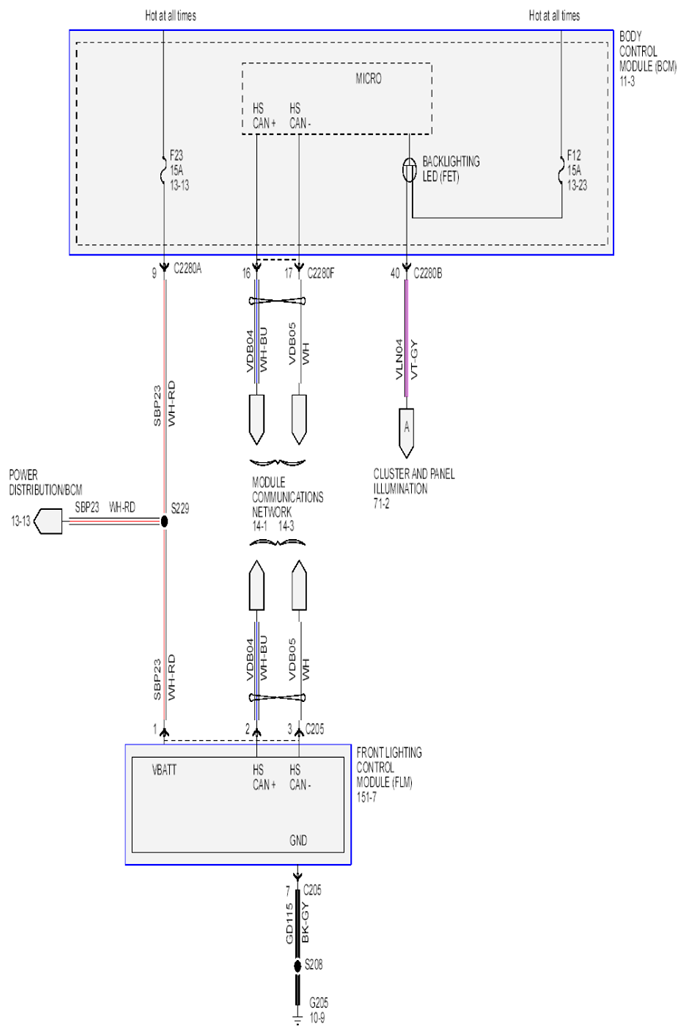

Fig 1: Cluster And Panel Illumination Circuit Diagram (1 Of 3)
G07854733Courtesy of FORD MOTOR CO.

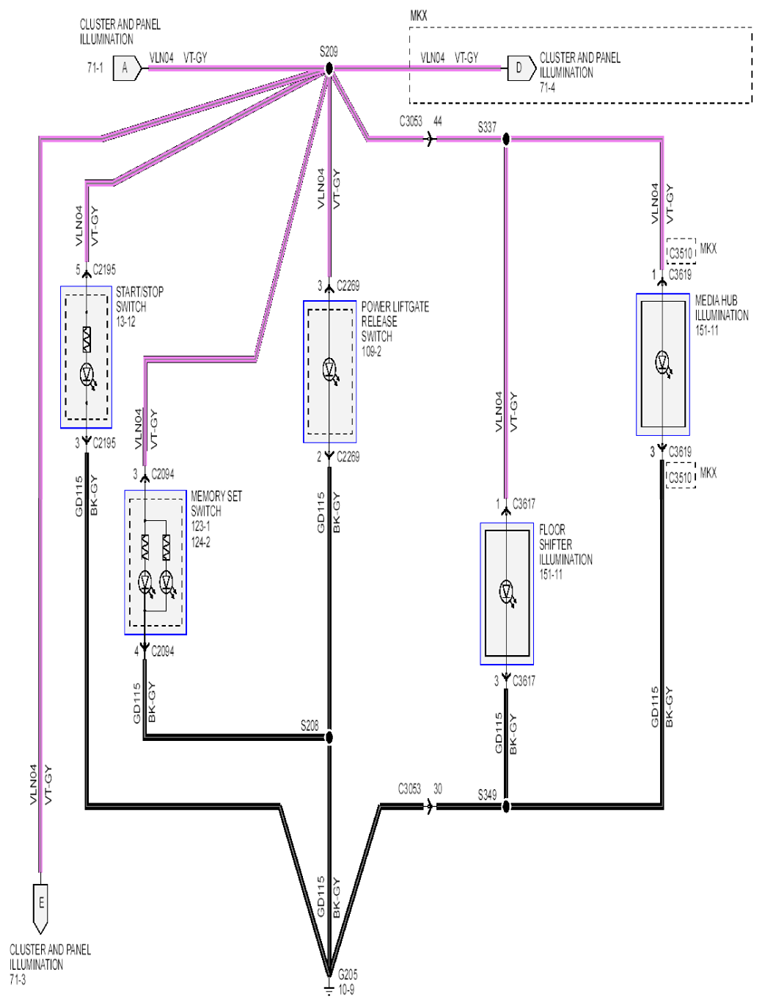

Fig 2: Cluster And Panel Illumination Circuit Diagram (2 Of 3)
G07854734Courtesy of FORD MOTOR CO.

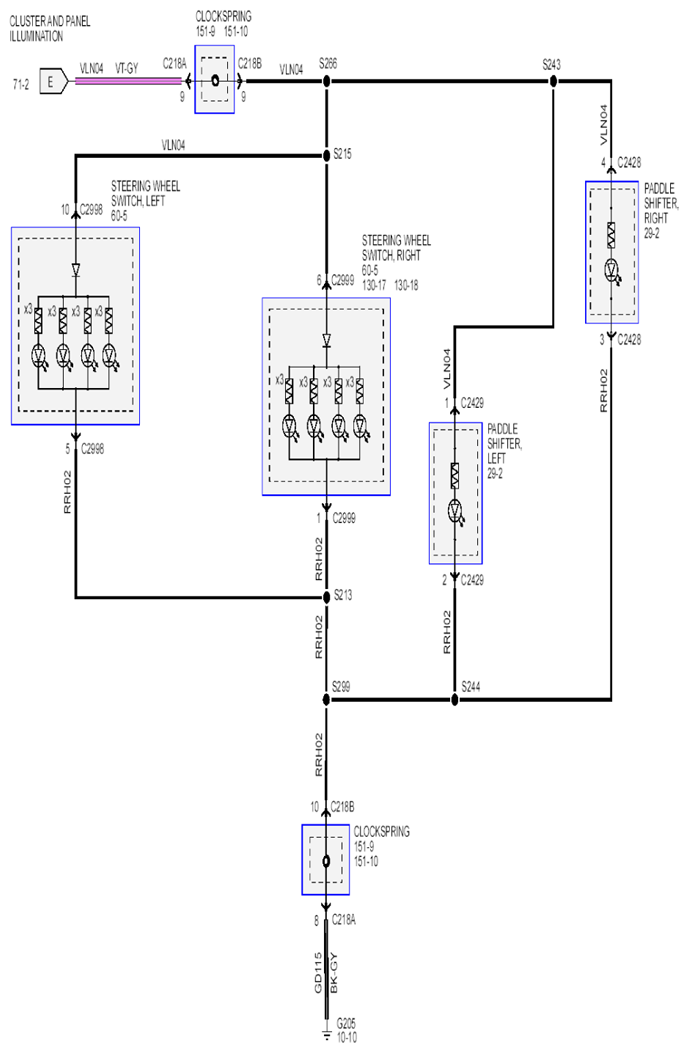

Fig 3: Cluster And Panel Illumination Circuit Diagram (3 Of 3)
G07854735Courtesy of FORD MOTOR CO.
