With Climate Controlled Seats - MKX

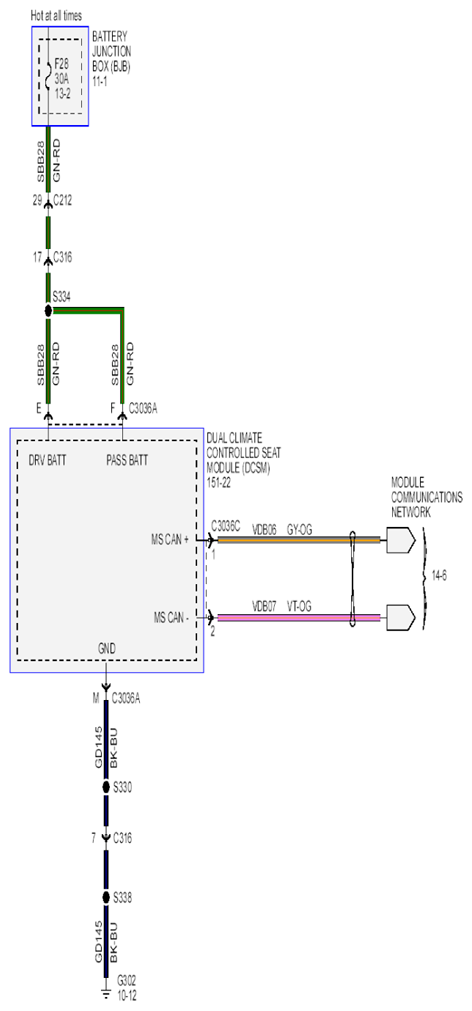

Fig 1: Climate Control Seats Circuit Diagram - With Climate Controlled Seats, MKX (1 Of 5)
G07854802Courtesy of FORD MOTOR CO.

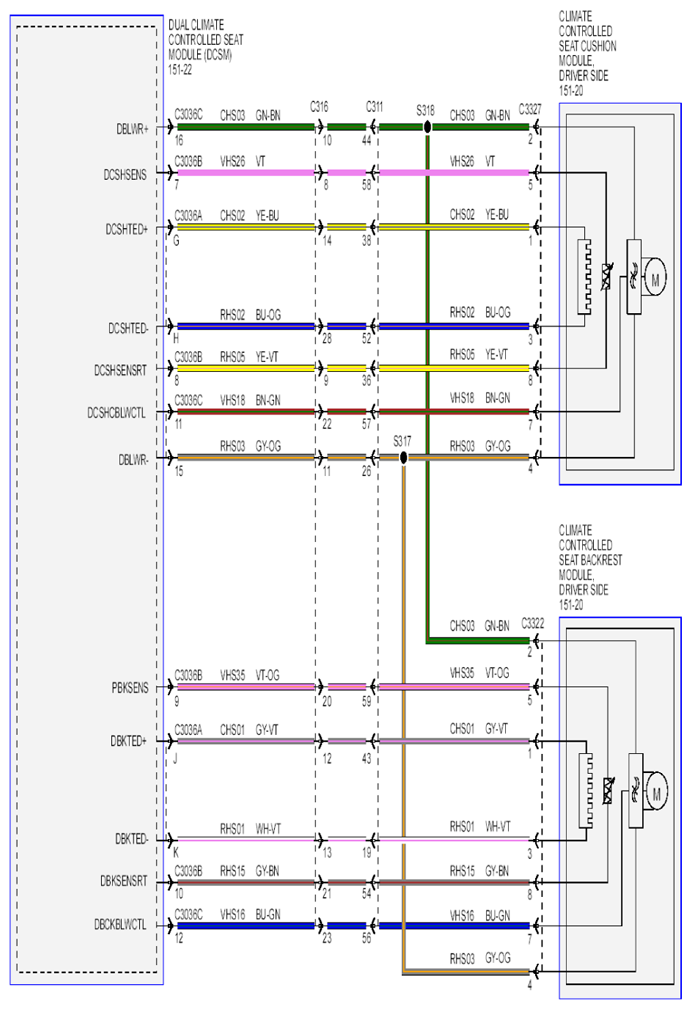

Fig 2: Climate Control Seats Circuit Diagram - With Climate Controlled Seats, MKX (2 Of 5)
G07854803Courtesy of FORD MOTOR CO.

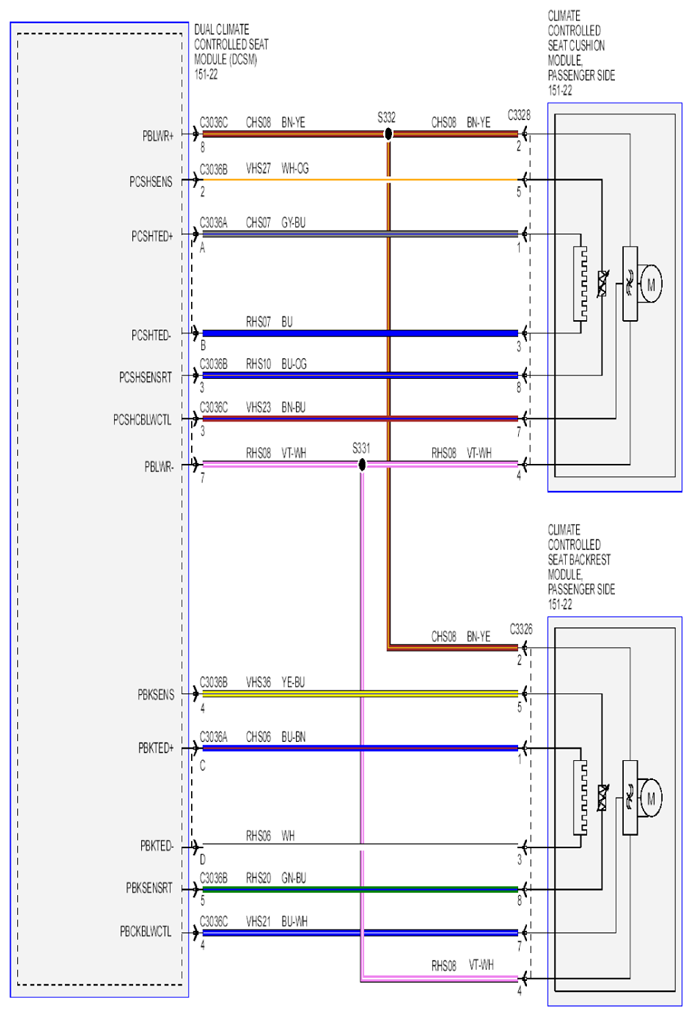

Fig 3: Climate Control Seats Circuit Diagram - With Climate Controlled Seats, MKX (3 Of 5)
G07854804Courtesy of FORD MOTOR CO.

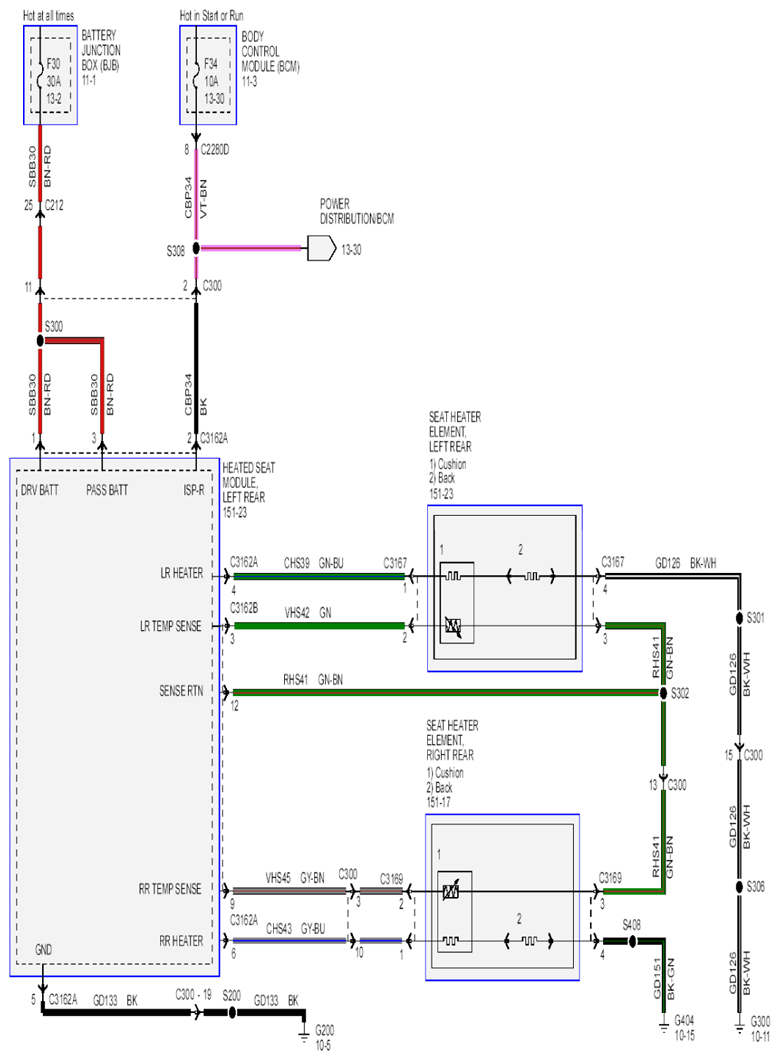

Fig 4: Climate Control Seats Circuit Diagram - With Climate Controlled Seats, MKX (4 Of 5)
G07854805Courtesy of FORD MOTOR CO.

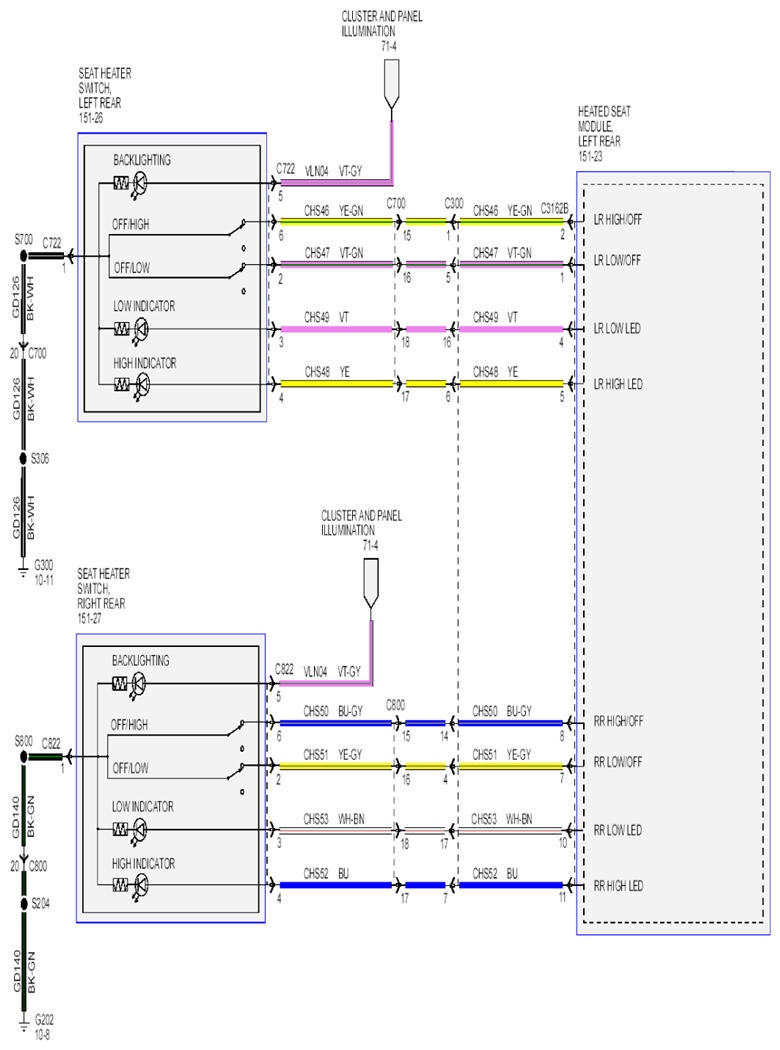

Fig 5: Climate Control Seats Circuit Diagram - With Climate Controlled Seats, MKX (5 Of 5)
G07854806Courtesy of FORD MOTOR CO.
