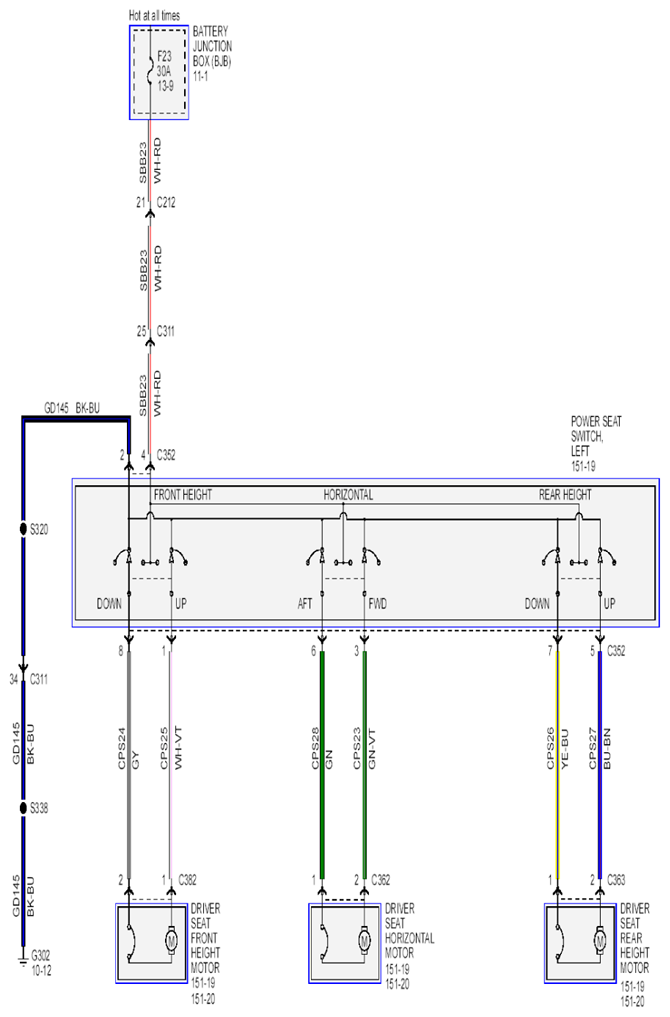

Home >> Ford >> 2011 >> Edge SEL, FWD >> Repair and Diagnosis (Single Page) >> Electrical >> Motors, Switches, Relays >> OEM Wiring Diagrams >> Climate Control Seats >> Power Seat >> Power 6-Way Driver Seat
