Power 10-Way Passenger Seat

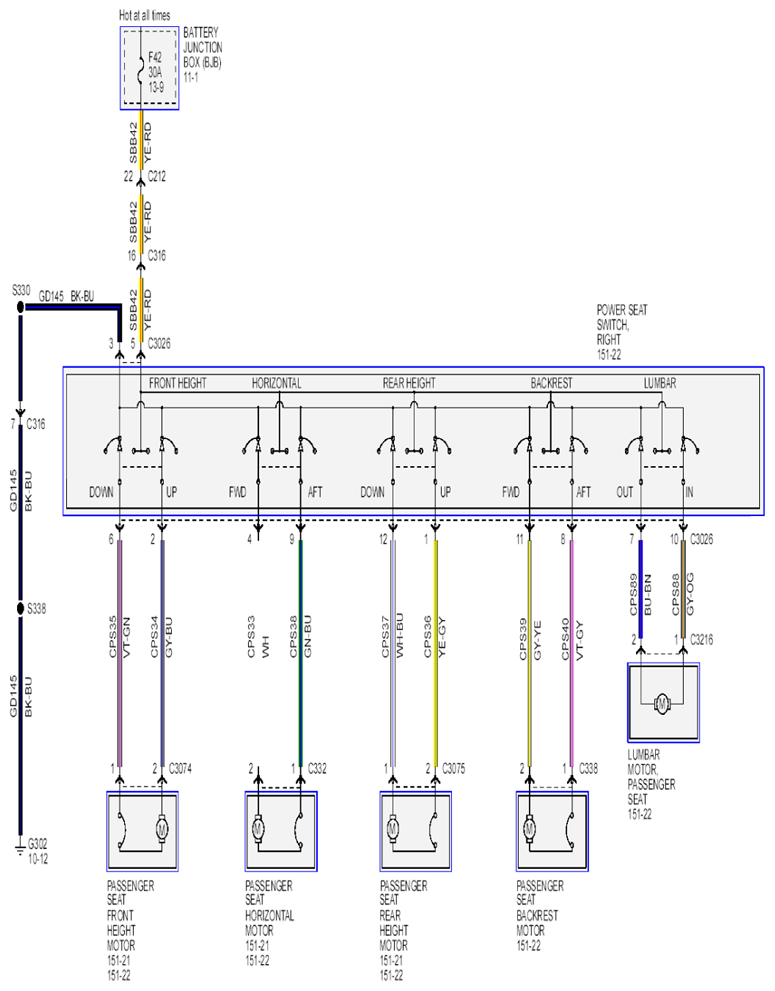

Fig 1: Power Seat Circuit Diagram - Power 10-Way Passenger Seat (1 Of 2)
G07854810Courtesy of FORD MOTOR CO.

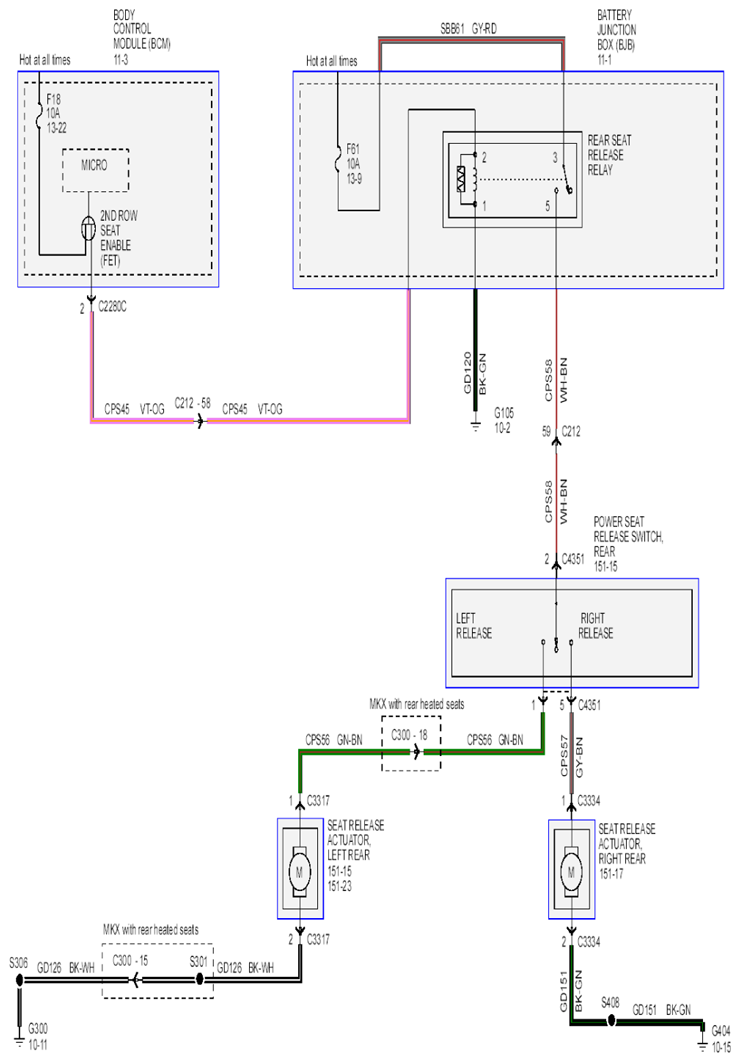

Fig 2: Power Seat Circuit Diagram - Power 10-Way Passenger Seat (2 Of 2)
G07854811Courtesy of FORD MOTOR CO.
