All Wheel Drive (AWD)

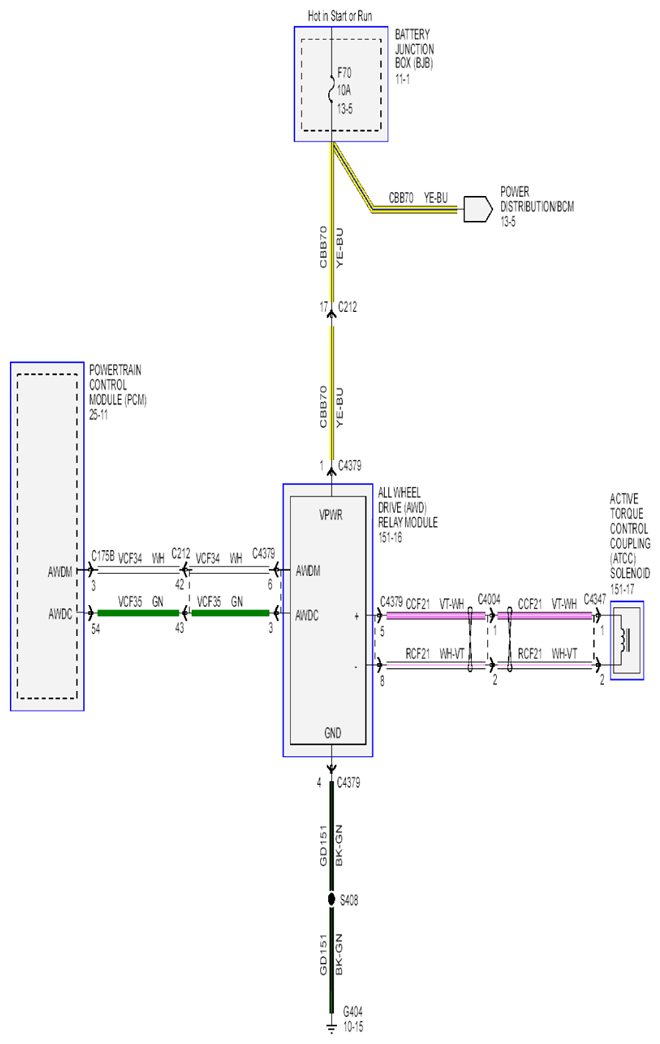

Fig 1: All Wheel Drive (AWD) Circuit Diagram

G07854706

Courtesy of FORD MOTOR CO.
